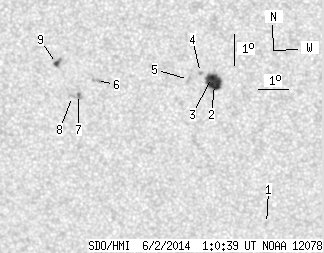

SDO HMI 2014-06-02 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.51 | 42.39 | 10.48 | 22.88 | -18.80 | 329.27 | -14.75 | 142.57 | 0.3980 | 503.9 | -27.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 01:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.09 | -23.21 | 332.13 | -11.90 | 153.81 | 0.4310 | 762.0 | 590.5 | |
| 10.93 | 22.59 | 5.85 | 12.10 | -18.69 | 330.78 | -13.24 | 145.13 | 0.3811 | 1086.6 | 634.2 | |
| 5.96 | -2.00 | 3.19 | -2.00 | -18.47 | 330.70 | -13.32 | 144.61 | 0.3789 | 1183.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -18.31 | 330.35 | -13.67 | 143.66 | 0.3802 | 902.0 | 777.3 | |
| 0.00 | 2.53 | 0.00 | 1.36 | -18.53 | 329.94 | -14.08 | 143.22 | 0.3870 | 685.0 | 568.6 | |
| 0.00 | 3.89 | 0.00 | 2.12 | -18.55 | 326.87 | -17.15 | 137.88 | 0.4185 | -938.0 | -762.9 | |
| 0.72 | 3.16 | 0.40 | 1.73 | -19.00 | 326.22 | -17.81 | 137.59 | 0.4305 | -990.1 | -670.9 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -19.06 | 326.01 | -18.02 | 137.38 | 0.4335 | -805.0 | -660.3 | |
| 1.90 | 4.43 | 1.04 | 2.42 | -18.00 | 325.58 | -18.44 | 134.94 | 0.4267 | -1006.7 | -819.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
