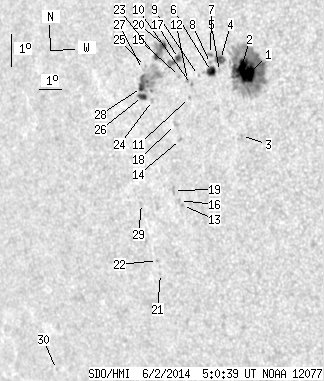

SDO HMI 2014-06-02 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.81 | 251.59 | 34.48 | 171.40 | -4.42 | 298.56 | -43.27 | 95.86 | 0.6890 | 425.1 | 160.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.91 | 137.68 | 10.56 | 91.44 | -4.26 | 300.23 | -41.59 | 95.81 | 0.6677 | 1221.6 | 431.3 | |
| 12.02 | -1.00 | 8.01 | -1.00 | -4.05 | 299.96 | -41.86 | 95.46 | 0.6710 | 922.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -6.12 | 299.79 | -42.03 | 98.52 | 0.6755 | 703.0 | 531.2 | |
| 4.07 | 8.14 | 2.75 | 5.50 | -3.80 | 299.11 | -42.71 | 95.01 | 0.6817 | 703.9 | 525.4 | |
| 0.00 | 1.90 | 0.00 | 1.28 | -4.16 | 299.04 | -42.78 | 95.54 | 0.6829 | 561.0 | 468.0 | |
| 5.79 | 9.22 | 3.93 | 6.27 | -4.16 | 298.71 | -43.12 | 95.50 | 0.6871 | 723.7 | 433.9 | |
| 0.36 | 2.08 | 0.25 | 1.41 | -3.64 | 298.70 | -43.12 | 94.75 | 0.6868 | 430.8 | 315.3 | |
| 0.00 | 1.81 | 0.00 | 1.23 | -3.92 | 298.68 | -43.14 | 95.15 | 0.6872 | 333.0 | 281.5 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -4.28 | 298.15 | -43.67 | 95.62 | 0.6942 | 640.0 | 447.2 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -4.55 | 297.83 | -43.99 | 95.99 | 0.6984 | 659.0 | 533.0 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -4.95 | 297.72 | -44.11 | 96.54 | 0.7002 | 605.0 | 520.2 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -4.43 | 297.67 | -44.15 | 95.79 | 0.7003 | 578.0 | 441.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -8.25 | 297.03 | -44.79 | 101.11 | 0.7128 | -698.0 | -595.2 | |
| 0.00 | 1.72 | 0.00 | 1.20 | -6.23 | 297.20 | -44.62 | 98.30 | 0.7079 | 524.0 | 355.5 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -4.30 | 297.34 | -44.48 | 95.59 | 0.7043 | 388.0 | 322.1 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -8.09 | 296.92 | -44.90 | 100.87 | 0.7139 | -678.0 | -577.6 | |
| 1.99 | 9.49 | 1.38 | 6.62 | -3.75 | 297.34 | -44.49 | 94.80 | 0.7040 | 867.5 | 500.0 | |
| 0.00 | 2.44 | 0.00 | 1.71 | -5.77 | 297.04 | -44.79 | 97.63 | 0.7094 | 651.0 | 491.6 | |
| 0.00 | 2.44 | 0.00 | 1.73 | -7.79 | 296.71 | -45.12 | 100.40 | 0.7160 | -517.0 | -483.6 | |
| 1.63 | 17.90 | 1.14 | 12.61 | -3.35 | 296.76 | -45.06 | 94.20 | 0.7109 | 549.6 | -36.7 | |
| 0.00 | 0.99 | 0.00 | 0.72 | -10.33 | 295.71 | -46.11 | 103.71 | 0.7321 | -410.0 | -431.5 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -9.93 | 295.65 | -46.17 | 103.15 | 0.7321 | -504.0 | -430.8 | |
| 2.08 | -20.00 | 1.47 | -20.00 | -3.69 | 296.39 | -45.43 | 94.64 | 0.7156 | -554.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.29 | -5.03 | 296.11 | -45.72 | 96.49 | 0.7200 | -577.0 | -565.2 | |
| 0.00 | 0.90 | 0.00 | 0.64 | -3.99 | 295.89 | -45.94 | 95.02 | 0.7219 | -587.0 | -481.2 | |
| 3.62 | 39.78 | 2.59 | 28.35 | -4.90 | 295.68 | -46.14 | 96.27 | 0.7251 | -713.6 | -624.4 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -4.08 | 295.75 | -46.08 | 95.14 | 0.7236 | -526.0 | -483.7 | |
| 3.34 | -26.00 | 2.40 | -26.00 | -4.63 | 295.66 | -46.16 | 95.89 | 0.7251 | -701.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.85 | -8.17 | 295.23 | -46.59 | 100.69 | 0.7341 | -240.0 | -286.4 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -13.28 | 290.04 | -51.78 | 106.33 | 0.7990 | -403.0 | -305.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
