SDO HMI 2014-06-02 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.20 | 247.54 | 31.82 | 166.82 | -4.29 | 298.68 | -42.60 | 95.75 | 0.6804 | 416.4 | 187.3 | |
|
previous
or next observation for the same group /

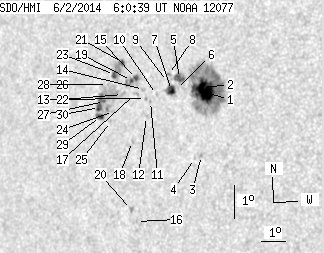

back to the solar disc SDO HMI 2014-06-02 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.47 | 136.24 | 9.52 | 89.66 | -4.26 | 300.25 | -41.02 | 95.87 | 0.6603 | 1224.9 | 454.5 | |
| 8.68 | -1.00 | 5.73 | -1.00 | -4.07 | 300.02 | -41.25 | 95.57 | 0.6631 | 1013.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -6.15 | 299.85 | -41.42 | 98.66 | 0.6676 | 657.0 | 591.5 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -6.24 | 299.56 | -41.72 | 98.75 | 0.6716 | 541.0 | 432.5 | |
| 4.79 | 8.95 | 3.21 | 5.99 | -3.79 | 299.14 | -42.14 | 95.06 | 0.6743 | 637.1 | 517.3 | |
| 0.00 | 0.99 | 0.00 | 0.67 | -4.10 | 298.99 | -42.28 | 95.50 | 0.6764 | 516.0 | 343.3 | |
| 5.88 | 9.85 | 3.96 | 6.64 | -4.16 | 298.78 | -42.49 | 95.57 | 0.6792 | 765.5 | 438.3 | |
| 0.00 | 1.81 | 0.00 | 1.22 | -3.67 | 298.69 | -42.58 | 94.84 | 0.6800 | 464.0 | 304.2 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -3.88 | 298.64 | -42.64 | 95.15 | 0.6809 | 318.0 | 259.8 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -4.27 | 298.15 | -43.13 | 95.68 | 0.6873 | 582.0 | 458.9 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -4.49 | 297.88 | -43.39 | 95.96 | 0.6909 | 606.0 | 592.0 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -4.94 | 297.68 | -43.60 | 96.60 | 0.6939 | 634.0 | 466.0 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -4.39 | 297.68 | -43.60 | 95.81 | 0.6934 | 498.0 | 435.0 | |
| 0.00 | 1.81 | 0.00 | 1.24 | -4.12 | 297.61 | -43.66 | 95.40 | 0.6940 | 533.0 | 409.3 | |
| 1.90 | 11.66 | 1.31 | 8.06 | -3.78 | 297.34 | -43.94 | 94.89 | 0.6972 | 832.6 | 359.9 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -8.15 | 296.88 | -44.39 | 101.05 | 0.7078 | -711.0 | -618.8 | |
| 0.00 | 2.26 | 0.00 | 1.56 | -4.24 | 297.26 | -44.01 | 95.54 | 0.6984 | 399.0 | 310.8 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -5.70 | 297.01 | -44.26 | 97.61 | 0.7030 | 586.0 | 504.7 | |
| 1.27 | -15.00 | 0.88 | -15.00 | -3.84 | 297.12 | -44.15 | 94.96 | 0.6999 | 616.4 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.52 | -7.78 | 296.72 | -44.55 | 100.50 | 0.7093 | -624.0 | -513.0 | |
| 1.36 | 15.55 | 0.94 | 10.85 | -3.29 | 296.77 | -44.50 | 94.15 | 0.7039 | 556.6 | -46.9 | |
| 0.00 | 2.71 | 0.00 | 1.89 | -4.26 | 296.71 | -44.57 | 95.53 | 0.7054 | -308.0 | -263.6 | |
| 2.26 | -21.00 | 1.58 | -21.00 | -3.65 | 296.41 | -44.87 | 94.64 | 0.7087 | -561.0 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.40 | -4.78 | 296.28 | -45.00 | 96.22 | 0.7111 | -643.0 | -526.5 | |
| 0.00 | 0.99 | 0.00 | 0.70 | -5.08 | 296.12 | -45.16 | 96.63 | 0.7133 | -657.0 | -546.3 | |
| 0.00 | 0.45 | 0.00 | 0.32 | -3.95 | 296.08 | -45.19 | 95.04 | 0.7128 | -604.0 | -479.2 | |
| 0.27 | 38.33 | 0.19 | 27.07 | -4.47 | 295.91 | -45.36 | 95.75 | 0.7153 | -972.7 | -625.5 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -3.95 | 295.82 | -45.45 | 95.02 | 0.7160 | -536.0 | -479.7 | |
| 3.16 | -27.00 | 2.25 | -27.00 | -4.93 | 295.70 | -45.58 | 96.37 | 0.7183 | -739.6 | 999999 | |
| 3.16 | -27.00 | 2.25 | -27.00 | -4.65 | 295.68 | -45.60 | 95.99 | 0.7183 | -739.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
