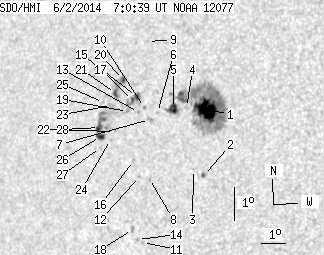

SDO HMI 2014-06-02 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.73 | 248.33 | 33.82 | 165.52 | -4.31 | 298.82 | -41.91 | 95.85 | 0.6716 | 447.0 | 220.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 07:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.02 | 168.70 | 19.61 | 110.46 | -4.17 | 300.16 | -40.57 | 95.78 | 0.6543 | 1098.1 | 413.0 | |
| 0.63 | 1.81 | 0.42 | 1.19 | -6.18 | 299.87 | -40.85 | 98.81 | 0.6604 | 741.4 | 686.7 | |
| 0.00 | 0.99 | 0.00 | 0.66 | -5.99 | 299.48 | -41.24 | 98.46 | 0.6651 | 424.0 | 275.0 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -4.10 | 299.35 | -41.38 | 95.60 | 0.6648 | 569.0 | 479.6 | |
| 6.33 | -1.00 | 4.22 | -1.00 | -4.13 | 298.82 | -41.91 | 95.58 | 0.6717 | 726.4 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -4.24 | 298.15 | -42.58 | 95.69 | 0.6804 | 642.0 | 529.9 | |
| 0.00 | 2.71 | 0.00 | 1.84 | -4.45 | 297.80 | -42.93 | 95.97 | 0.6850 | 595.0 | 536.2 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -6.26 | 297.64 | -43.09 | 98.57 | 0.6890 | 591.0 | 526.8 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -2.08 | 297.85 | -42.88 | 92.49 | 0.6830 | 527.0 | 470.8 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -4.09 | 297.62 | -43.11 | 95.41 | 0.6870 | 555.0 | 489.7 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -8.21 | 297.10 | -43.63 | 101.29 | 0.6986 | -564.0 | -420.5 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -6.19 | 297.22 | -43.51 | 98.41 | 0.6942 | 467.0 | 425.2 | |
| 0.00 | 1.18 | 0.00 | 0.80 | -4.24 | 297.35 | -43.37 | 95.61 | 0.6905 | 458.0 | 372.1 | |
| 0.00 | 1.27 | 0.00 | 0.88 | -8.12 | 296.90 | -43.83 | 101.12 | 0.7009 | -727.0 | -621.5 | |
| 2.35 | 9.94 | 1.61 | 6.81 | -3.75 | 297.30 | -43.43 | 94.90 | 0.6907 | 778.8 | 351.9 | |
| 0.00 | 1.08 | 0.00 | 0.75 | -5.70 | 297.02 | -43.71 | 97.68 | 0.6961 | 662.0 | 517.8 | |
| 1.18 | -15.00 | 0.81 | -15.00 | -3.87 | 297.12 | -43.60 | 95.06 | 0.6931 | 553.5 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.38 | -7.81 | 296.73 | -44.00 | 100.65 | 0.7025 | -626.0 | -497.5 | |
| 0.00 | 2.98 | 0.00 | 2.05 | -4.20 | 296.89 | -43.84 | 95.52 | 0.6963 | -237.0 | -173.6 | |
| 1.27 | 13.83 | 0.87 | 9.57 | -3.23 | 296.78 | -43.94 | 94.10 | 0.6969 | 495.5 | -56.9 | |
| 1.99 | -20.00 | 1.38 | -20.00 | -3.65 | 296.42 | -44.31 | 94.69 | 0.7018 | -632.3 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -4.81 | 296.29 | -44.44 | 96.32 | 0.7043 | -738.0 | -630.0 | |
| 0.00 | 3.35 | 0.00 | 2.33 | -4.02 | 296.22 | -44.51 | 95.19 | 0.7044 | -385.0 | -367.6 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -5.05 | 296.09 | -44.63 | 96.65 | 0.7069 | -620.0 | -557.7 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -3.92 | 295.88 | -44.84 | 95.03 | 0.7085 | -413.0 | -374.9 | |
| 3.80 | 27.03 | 2.67 | 18.94 | -4.96 | 295.67 | -45.06 | 96.47 | 0.7120 | -723.1 | -610.2 | |
| 0.00 | 1.18 | 0.00 | 0.83 | -5.29 | 295.64 | -45.09 | 96.94 | 0.7127 | -561.0 | -410.3 | |
| 3.16 | -26.00 | 2.23 | -26.00 | -4.68 | 295.65 | -45.08 | 96.08 | 0.7120 | -691.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
