SDO HMI 2014-06-02 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.71 | 235.04 | 34.07 | 155.17 | -4.37 | 298.89 | -41.29 | 96.01 | 0.6636 | 442.5 | 200.0 | |
|
previous
or next observation for the same group /

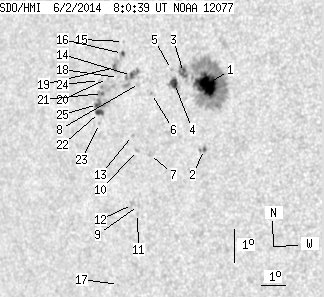

back to the solar disc SDO HMI 2014-06-02 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.46 | 152.61 | 20.39 | 98.86 | -4.17 | 300.17 | -40.01 | 95.85 | 0.6468 | 1072.6 | 416.8 | |
| 0.90 | 3.80 | 0.59 | 2.48 | -6.15 | 299.94 | -40.24 | 98.87 | 0.6524 | 752.6 | 561.1 | |
| 3.62 | -1.00 | 2.37 | -1.00 | -3.79 | 299.27 | -40.91 | 95.19 | 0.6584 | 692.7 | 999999 | |
| 4.97 | 8.50 | 3.29 | 5.62 | -4.13 | 298.88 | -41.30 | 95.65 | 0.6637 | 697.7 | 420.3 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -3.70 | 298.79 | -41.39 | 95.00 | 0.6646 | 518.0 | 358.7 | |
| 0.00 | 0.72 | 0.00 | 0.49 | -4.43 | 297.92 | -42.26 | 96.00 | 0.6765 | 748.0 | 701.6 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -6.29 | 297.67 | -42.51 | 98.71 | 0.6817 | 579.0 | 500.4 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -4.12 | 297.44 | -42.74 | 95.50 | 0.6823 | 96.0 | 100.3 | |
| 0.00 | 1.36 | 0.00 | 0.93 | -7.85 | 297.03 | -43.15 | 100.86 | 0.6922 | -559.0 | -494.5 | |
| 0.00 | 1.90 | 0.00 | 1.29 | -6.16 | 297.18 | -43.00 | 98.45 | 0.6877 | 509.0 | 414.7 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -8.09 | 296.95 | -43.23 | 101.20 | 0.6935 | -674.0 | -601.6 | |
| 0.00 | 4.16 | 0.00 | 2.86 | -7.81 | 296.78 | -43.40 | 100.76 | 0.6952 | -528.0 | -485.1 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -5.70 | 297.02 | -43.16 | 97.76 | 0.6892 | 659.0 | 524.9 | |
| 1.81 | 12.84 | 1.23 | 8.72 | -3.87 | 297.12 | -43.05 | 95.11 | 0.6861 | 605.7 | 266.6 | |
| 0.00 | 0.81 | 0.00 | 0.55 | -2.83 | 296.85 | -43.33 | 93.58 | 0.6890 | 437.0 | 351.1 | |
| 1.27 | 3.07 | 0.86 | 2.10 | -3.20 | 296.79 | -43.39 | 94.10 | 0.6900 | 562.5 | 306.9 | |
| 0.00 | 0.63 | 0.00 | 0.44 | -10.27 | 295.80 | -44.38 | 104.02 | 0.7117 | -417.0 | -470.3 | |
| 0.00 | 1.08 | 0.00 | 0.74 | -3.93 | 296.57 | -43.61 | 95.14 | 0.6931 | -195.0 | -173.1 | |
| 1.54 | 5.97 | 1.06 | 4.09 | -3.62 | 296.42 | -43.75 | 94.69 | 0.6948 | -667.1 | -311.5 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -3.95 | 296.11 | -44.07 | 95.14 | 0.6990 | -580.0 | -450.4 | |
| 0.63 | 29.02 | 0.44 | 20.15 | -4.41 | 295.86 | -44.32 | 95.77 | 0.7025 | -930.7 | -623.7 | |
| 3.25 | -21.00 | 2.27 | -21.00 | -4.99 | 295.68 | -44.50 | 96.58 | 0.7051 | -762.1 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -5.33 | 295.65 | -44.53 | 97.05 | 0.7058 | -534.0 | -450.3 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -4.01 | 295.76 | -44.42 | 95.20 | 0.7034 | -424.0 | -366.3 | |
| 2.26 | -21.00 | 1.57 | -21.00 | -4.74 | 295.62 | -44.56 | 96.23 | 0.7057 | -754.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
