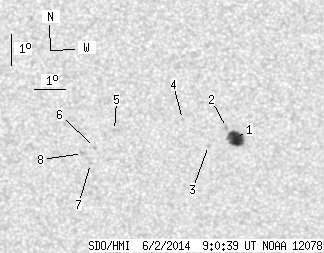

SDO HMI 2014-06-02 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.09 | 28.30 | 8.49 | 14.98 | -18.74 | 330.06 | -9.57 | 153.46 | 0.3526 | 548.4 | 140.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.09 | 19.44 | 8.49 | 10.25 | -18.72 | 331.00 | -8.63 | 155.54 | 0.3448 | 1121.9 | 762.2 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -18.36 | 330.73 | -8.91 | 154.40 | 0.3415 | 890.0 | 704.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -18.94 | 330.11 | -9.52 | 153.67 | 0.3543 | 711.0 | 621.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -18.11 | 329.31 | -10.32 | 150.61 | 0.3485 | 703.0 | 509.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -18.45 | 327.07 | -12.57 | 146.19 | 0.3725 | -871.0 | -637.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -18.99 | 326.36 | -13.27 | 145.62 | 0.3859 | -862.0 | -715.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.51 | 326.19 | -13.44 | 146.06 | 0.3942 | -720.0 | -513.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -19.18 | 325.95 | -13.68 | 145.11 | 0.3922 | -882.0 | -691.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
