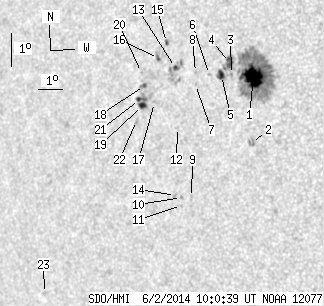

SDO HMI 2014-06-02 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.94 | 231.07 | 28.44 | 149.57 | -4.39 | 299.15 | -39.93 | 96.19 | 0.6457 | 444.9 | 269.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.76 | 148.53 | 17.04 | 94.52 | -4.16 | 300.26 | -38.82 | 95.99 | 0.6309 | 1129.2 | 424.0 | |
| 0.00 | 4.97 | 0.00 | 3.19 | -6.18 | 300.03 | -39.05 | 99.13 | 0.6366 | 607.0 | 595.5 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -4.10 | 299.40 | -39.68 | 95.79 | 0.6425 | 683.0 | 484.5 | |
| 4.16 | 20.43 | 2.68 | 13.21 | -3.73 | 299.34 | -39.74 | 95.21 | 0.6429 | 637.1 | 462.9 | |
| 3.62 | -4.00 | 2.35 | -4.00 | -4.12 | 299.00 | -40.08 | 95.79 | 0.6478 | 718.7 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -4.09 | 298.52 | -40.56 | 95.68 | 0.6541 | 625.0 | 531.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -4.39 | 297.93 | -41.15 | 96.08 | 0.6621 | 688.0 | 611.7 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -4.03 | 297.96 | -41.13 | 95.53 | 0.6614 | 505.0 | 411.8 | |
| 0.00 | 1.90 | 0.00 | 1.27 | -7.85 | 297.44 | -41.65 | 101.16 | 0.6733 | -557.0 | -519.5 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -7.84 | 297.02 | -42.06 | 101.07 | 0.6785 | -631.0 | -547.4 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -8.09 | 296.99 | -42.09 | 101.43 | 0.6794 | -669.0 | -589.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -5.70 | 297.09 | -41.99 | 97.93 | 0.6744 | 567.0 | 508.7 | |
| 1.45 | 17.63 | 0.96 | 11.76 | -3.87 | 297.15 | -41.93 | 95.21 | 0.6718 | 616.0 | 200.8 | |
| 0.00 | 1.72 | 0.00 | 1.16 | -7.78 | 296.78 | -42.30 | 100.93 | 0.6815 | -576.0 | -514.6 | |
| 0.81 | 1.72 | 0.54 | 1.15 | -3.10 | 296.82 | -42.26 | 94.05 | 0.6755 | 587.1 | 472.1 | |
| 0.90 | 2.89 | 0.61 | 1.95 | -3.59 | 296.47 | -42.62 | 94.74 | 0.6804 | -695.7 | -440.1 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -4.93 | 296.20 | -42.88 | 96.68 | 0.6849 | -740.0 | -690.3 | |
| 0.81 | 3.16 | 0.55 | 2.16 | -4.41 | 295.83 | -43.26 | 95.88 | 0.6892 | -870.4 | -654.7 | |
| 3.89 | 15.46 | 2.66 | 10.56 | -5.02 | 295.69 | -43.39 | 96.75 | 0.6914 | -794.7 | -639.3 | |
| 0.00 | 0.63 | 0.00 | 0.43 | -4.01 | 295.73 | -43.36 | 95.30 | 0.6901 | -537.0 | -433.6 | |
| 1.54 | -19.00 | 1.05 | -19.00 | -4.83 | 295.58 | -43.50 | 96.47 | 0.6926 | -657.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.18 | -5.47 | 295.40 | -43.69 | 97.37 | 0.6956 | -497.0 | -472.8 | |
| 0.00 | 2.08 | 0.00 | 1.58 | -10.76 | 290.50 | -48.59 | 103.79 | 0.7609 | -425.0 | -329.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
