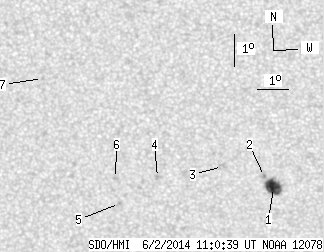

SDO HMI 2014-06-02 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.82 | 33.37 | 8.32 | 17.59 | -18.50 | 329.71 | -8.82 | 154.95 | 0.3448 | 620.7 | 176.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.82 | 19.62 | 8.32 | 10.32 | -18.77 | 331.07 | -7.47 | 158.57 | 0.3383 | 1102.4 | 693.1 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -18.42 | 330.79 | -7.74 | 157.44 | 0.3346 | 850.0 | 632.0 | |
| 0.00 | 4.70 | 0.00 | 2.47 | -18.10 | 329.45 | -9.09 | 153.60 | 0.3390 | 700.0 | 640.7 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -18.45 | 327.31 | -11.22 | 149.07 | 0.3608 | -812.0 | -717.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -19.28 | 326.00 | -12.53 | 147.54 | 0.3832 | -902.0 | -693.6 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -18.47 | 325.94 | -12.60 | 146.16 | 0.3732 | -784.0 | -654.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.30 | 323.79 | -14.75 | 136.14 | 0.3559 | 664.0 | 413.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
