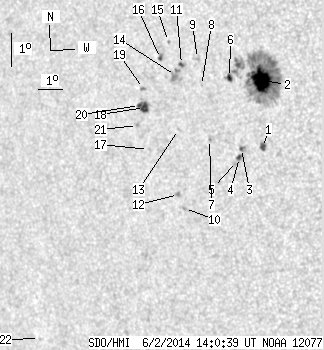

SDO HMI 2014-06-02 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.37 | 229.09 | 27.82 | 143.09 | -4.46 | 299.54 | -37.34 | 96.66 | 0.6109 | 448.4 | 352.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.26 | 4.79 | 1.40 | 2.97 | -6.25 | 300.29 | -36.60 | 99.75 | 0.6036 | 849.2 | 546.0 | |
| 28.38 | 175.24 | 17.52 | 108.28 | -4.20 | 300.39 | -36.49 | 96.37 | 0.5990 | 1134.6 | 450.2 | |
| 0.72 | 3.43 | 0.45 | 2.15 | -6.27 | 299.48 | -37.41 | 99.62 | 0.6147 | 742.6 | 715.2 | |
| 1.36 | 2.53 | 0.85 | 1.59 | -6.55 | 299.38 | -37.51 | 100.04 | 0.6165 | 741.9 | 589.7 | |
| 0.00 | 2.26 | 0.00 | 1.42 | -6.67 | 299.25 | -37.64 | 100.21 | 0.6185 | 490.0 | 491.8 | |
| 2.44 | -2.00 | 1.53 | -2.00 | -4.10 | 299.17 | -37.71 | 96.05 | 0.6158 | 737.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -5.99 | 298.26 | -38.63 | 98.93 | 0.6307 | -620.0 | -490.8 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -4.34 | 298.07 | -38.82 | 96.29 | 0.6311 | 661.0 | 547.1 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -3.52 | 297.96 | -38.93 | 94.97 | 0.6318 | 746.0 | 577.5 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -8.10 | 297.05 | -39.84 | 101.94 | 0.6505 | -587.0 | -527.1 | |
| 1.08 | 2.08 | 0.70 | 1.34 | -3.69 | 297.31 | -39.57 | 95.19 | 0.6406 | 762.1 | 623.6 | |
| 0.00 | 2.53 | 0.00 | 1.65 | -7.66 | 296.86 | -40.03 | 101.25 | 0.6521 | -727.0 | -571.9 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -5.68 | 297.06 | -39.83 | 98.23 | 0.6462 | 493.0 | 458.3 | |
| 0.00 | 10.21 | 0.00 | 6.60 | -4.03 | 297.06 | -39.83 | 95.68 | 0.6443 | -172.0 | 101.6 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -2.99 | 296.83 | -40.05 | 94.05 | 0.6465 | 544.0 | 443.2 | |
| 1.08 | 3.25 | 0.71 | 2.12 | -3.51 | 296.49 | -40.40 | 94.82 | 0.6514 | -639.1 | -461.4 | |
| 0.00 | 0.81 | 0.00 | 0.54 | -6.28 | 295.79 | -41.09 | 98.94 | 0.6637 | -639.0 | -556.2 | |
| 5.51 | 10.21 | 3.64 | 6.74 | -5.00 | 295.74 | -41.14 | 97.00 | 0.6626 | -822.9 | -579.2 | |
| 0.00 | 1.90 | 0.00 | 1.25 | -4.42 | 295.74 | -41.14 | 96.13 | 0.6620 | -722.0 | -648.7 | |
| 1.54 | -18.00 | 1.02 | -18.00 | -4.93 | 295.54 | -41.34 | 96.88 | 0.6651 | -631.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -5.54 | 295.41 | -41.47 | 97.78 | 0.6676 | -636.0 | -530.4 | |
| 0.00 | 0.81 | 0.00 | 0.60 | -12.07 | 290.19 | -46.69 | 105.94 | 0.7423 | -422.0 | -318.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
