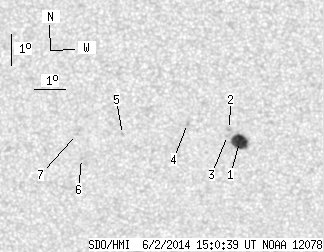

SDO HMI 2014-06-02 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.18 | 28.65 | 8.48 | 15.03 | -18.73 | 330.42 | -5.91 | 162.81 | 0.3300 | 661.4 | 317.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.18 | 19.34 | 8.48 | 10.13 | -18.80 | 331.16 | -5.17 | 164.80 | 0.3269 | 1116.8 | 758.4 | |
| 0.00 | 2.26 | 0.00 | 1.18 | -18.42 | 330.85 | -5.48 | 163.59 | 0.3222 | 957.0 | 686.2 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -18.61 | 330.78 | -5.55 | 163.57 | 0.3255 | 676.0 | 567.8 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -18.22 | 329.51 | -6.83 | 159.65 | 0.3262 | 834.0 | 684.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -18.57 | 327.39 | -8.95 | 154.59 | 0.3450 | -812.0 | -647.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -19.34 | 326.00 | -10.33 | 152.36 | 0.3662 | -774.0 | -622.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -18.57 | 325.89 | -10.44 | 151.02 | 0.3562 | -774.0 | -564.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
