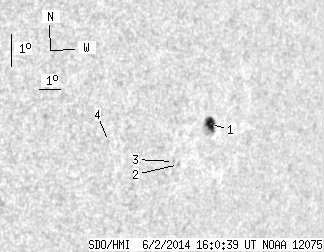

SDO HMI 2014-06-02 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.04 | 19.06 | 6.99 | 14.64 | -8.76 | 25.17 | 49.39 | 258.94 | 0.7667 | 569.7 | 448.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.04 | 16.08 | 6.99 | 12.43 | -8.60 | 25.49 | 49.71 | 259.20 | 0.7701 | 740.3 | 511.7 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -9.84 | 24.21 | 48.43 | 257.37 | 0.7577 | 636.0 | 533.8 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -9.75 | 23.96 | 48.18 | 257.45 | 0.7548 | 523.0 | 532.9 | |
| 0.00 | 0.72 | 0.00 | 0.51 | -9.14 | 20.92 | 45.14 | 257.68 | 0.7187 | -642.0 | -511.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
