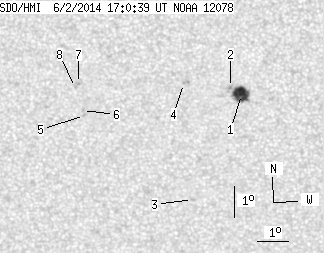

SDO HMI 2014-06-02 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.81 | 30.36 | 8.79 | 15.96 | -19.03 | 330.25 | -4.98 | 165.69 | 0.3310 | 584.0 | 213.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.81 | 21.32 | 8.79 | 11.16 | -18.83 | 331.25 | -3.98 | 168.21 | 0.3228 | 1127.9 | 718.6 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -18.61 | 330.90 | -4.33 | 167.05 | 0.3204 | 1049.0 | 836.3 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -22.23 | 329.54 | -5.69 | 166.09 | 0.3831 | 681.0 | 537.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -18.48 | 329.39 | -5.84 | 162.65 | 0.3249 | 731.0 | 580.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -19.50 | 326.13 | -9.09 | 155.42 | 0.3597 | -746.0 | -664.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -19.33 | 326.07 | -9.15 | 155.09 | 0.3577 | -755.0 | -620.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -18.47 | 325.99 | -9.23 | 153.76 | 0.3456 | -898.0 | -728.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -18.60 | 325.89 | -9.34 | 153.68 | 0.3483 | -755.0 | -606.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
