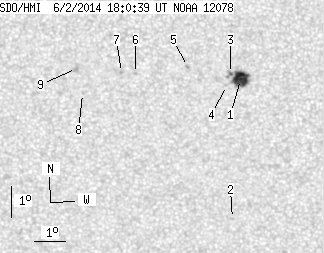

SDO HMI 2014-06-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.53 | 32.97 | 9.17 | 17.28 | -18.93 | 330.24 | -4.43 | 167.06 | 0.3274 | 591.4 | 136.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.08 | 22.23 | 8.93 | 11.62 | -18.86 | 331.24 | -3.43 | 169.81 | 0.3216 | 1119.2 | 659.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -23.38 | 330.86 | -3.81 | 171.09 | 0.3954 | 708.0 | 621.3 | |
| 0.45 | 1.90 | 0.24 | 0.99 | -18.67 | 330.92 | -3.75 | 168.77 | 0.3195 | 1008.0 | 776.2 | |
| 0.00 | 0.27 | 0.00 | 0.14 | -19.05 | 330.78 | -3.89 | 168.62 | 0.3261 | 663.0 | 608.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.44 | 329.54 | -5.12 | 164.63 | 0.3211 | 973.0 | 816.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.66 | 327.86 | -6.81 | 160.20 | 0.3330 | -900.0 | -713.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -18.63 | 327.41 | -7.26 | 158.96 | 0.3351 | -875.0 | -724.0 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -19.30 | 326.11 | -8.56 | 156.47 | 0.3533 | -744.0 | -633.4 | |
| 0.00 | 3.79 | 0.00 | 2.00 | -18.50 | 325.96 | -8.71 | 155.09 | 0.3424 | -915.0 | -674.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
