SDO HMI 2014-06-02 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.26 | 36.59 | 8.50 | 19.18 | -19.02 | 330.27 | -3.84 | 168.79 | 0.3267 | 508.7 | 228.1 | |
|
previous
or next observation for the same group /

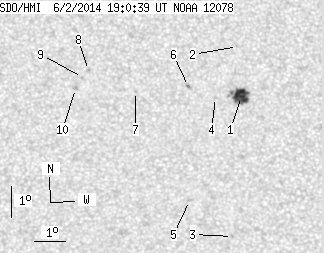

back to the solar disc SDO HMI 2014-06-02 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.26 | 23.76 | 8.50 | 12.42 | -18.86 | 331.29 | -2.82 | 171.60 | 0.3200 | 1130.0 | 737.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -17.27 | 331.19 | -2.92 | 170.44 | 0.2940 | -648.0 | -426.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -23.41 | 330.90 | -3.21 | 172.48 | 0.3946 | 745.0 | 627.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -18.89 | 330.46 | -3.66 | 169.18 | 0.3228 | 769.0 | 551.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -22.23 | 329.52 | -4.60 | 168.67 | 0.3793 | 673.0 | 554.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -18.54 | 329.60 | -4.52 | 166.45 | 0.3201 | 874.0 | 677.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.69 | 327.89 | -6.23 | 161.79 | 0.3304 | -785.0 | -663.7 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -18.02 | 326.40 | -7.72 | 157.03 | 0.3287 | -845.0 | -650.8 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -18.24 | 326.19 | -7.92 | 156.78 | 0.3334 | -576.0 | -545.5 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -18.59 | 325.95 | -8.16 | 156.59 | 0.3402 | -910.0 | -747.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
