SDO HMI 2014-06-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.62 | 38.06 | 8.68 | 19.92 | -18.96 | 330.32 | -3.24 | 170.52 | 0.3242 | 429.2 | 109.8 | |
|
previous
or next observation for the same group /

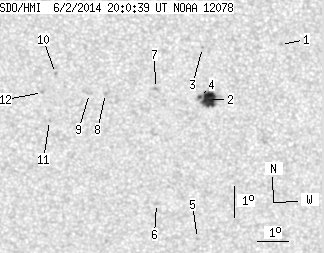

back to the solar disc SDO HMI 2014-06-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.70 | -17.11 | 333.60 | 0.04 | 180.14 | 0.2873 | 865.0 | 690.5 | |
| 15.45 | 24.22 | 8.07 | 12.65 | -18.86 | 331.29 | -2.27 | 173.21 | 0.3188 | 1135.1 | 663.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -17.20 | 331.12 | -2.44 | 171.95 | 0.2918 | -760.0 | -591.5 | |
| 1.17 | -2.00 | 0.61 | -2.00 | -18.79 | 331.00 | -2.56 | 172.33 | 0.3184 | 977.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -23.38 | 330.84 | -2.71 | 173.63 | 0.3931 | 798.0 | 644.7 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -22.22 | 329.52 | -4.04 | 170.02 | 0.3777 | 779.0 | 647.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -18.50 | 329.59 | -3.97 | 168.02 | 0.3176 | 830.0 | 597.4 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -18.66 | 327.98 | -5.58 | 163.54 | 0.3267 | -925.0 | -682.6 | |
| 0.00 | 2.35 | 0.00 | 1.23 | -18.66 | 327.46 | -6.10 | 162.12 | 0.3292 | -755.0 | -693.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.02 | 326.39 | -7.17 | 158.50 | 0.3253 | -937.0 | -703.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -19.52 | 326.13 | -7.43 | 159.51 | 0.3498 | -686.0 | -527.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -18.62 | 325.94 | -7.62 | 158.04 | 0.3372 | -947.0 | -785.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
