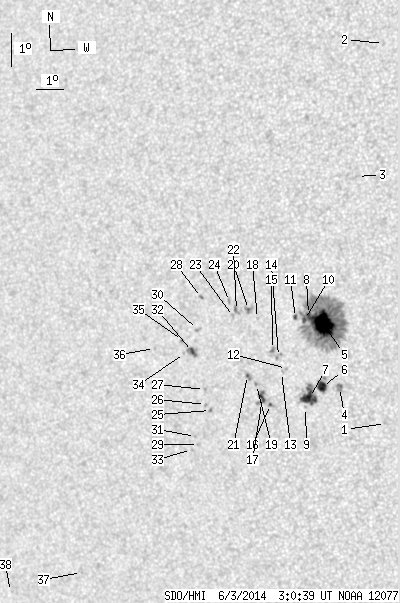

SDO HMI 2014-06-03 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.28 | 305.69 | 36.17 | 175.04 | -4.64 | 299.89 | -29.79 | 98.50 | 0.5028 | 446.6 | 306.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.61 | -7.25 | 302.66 | -27.03 | 104.85 | 0.4683 | 634.0 | 440.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 4.33 | 302.75 | -26.93 | 79.69 | 0.4609 | 588.0 | 405.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 0.28 | 301.94 | -27.75 | 88.57 | 0.4676 | 621.0 | 481.3 | |
| 0.00 | 5.06 | 0.00 | 2.87 | -6.14 | 301.13 | -28.55 | 101.93 | 0.4877 | 974.0 | 803.1 | |
| 34.27 | 204.52 | 19.45 | 116.13 | -4.19 | 300.67 | -29.01 | 97.82 | 0.4902 | 1286.5 | 443.4 | |
| 6.06 | 10.04 | 3.45 | 5.72 | -6.11 | 300.54 | -29.15 | 101.65 | 0.4965 | 1027.6 | 718.4 | |
| 13.47 | 20.71 | 7.72 | 11.87 | -6.44 | 300.06 | -29.63 | 102.14 | 0.5044 | 887.7 | 604.4 | |
| 0.27 | -5.00 | 0.15 | -5.00 | -3.91 | 300.16 | -29.53 | 97.14 | 0.4975 | 788.0 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -6.75 | 299.90 | -29.79 | 102.68 | 0.5077 | 543.0 | 392.3 | |
| 1.45 | -5.00 | 0.83 | -5.00 | -4.06 | 300.01 | -29.67 | 97.42 | 0.5000 | 624.5 | 999999 | |
| 0.99 | -5.00 | 0.57 | -5.00 | -4.00 | 299.70 | -29.99 | 97.23 | 0.5046 | 596.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -5.55 | 299.30 | -30.38 | 100.17 | 0.5135 | -673.0 | -472.3 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -5.67 | 299.12 | -30.57 | 100.35 | 0.5165 | 344.0 | 361.4 | |
| 0.00 | 2.53 | 0.00 | 1.46 | -5.19 | 299.04 | -30.65 | 99.39 | 0.5166 | -42.0 | 282.2 | |
| 0.00 | 2.80 | 0.00 | 1.62 | -4.97 | 298.84 | -30.85 | 98.92 | 0.5191 | 655.0 | 249.9 | |
| 0.54 | 2.26 | 0.32 | 1.31 | -6.65 | 298.66 | -31.02 | 102.06 | 0.5256 | -781.0 | -718.2 | |
| 2.53 | 9.58 | 1.48 | 5.59 | -6.44 | 298.39 | -31.30 | 101.57 | 0.5290 | -855.1 | -426.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -4.02 | 298.35 | -31.34 | 97.00 | 0.5247 | 785.0 | 533.7 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -6.04 | 298.20 | -31.48 | 100.77 | 0.5307 | -926.0 | -730.6 | |
| 0.45 | 4.70 | 0.26 | 2.74 | -3.75 | 298.04 | -31.65 | 96.42 | 0.5289 | 975.6 | 760.5 | |
| 0.54 | 2.98 | 0.32 | 1.75 | -5.76 | 297.90 | -31.79 | 100.16 | 0.5346 | -860.7 | -725.3 | |
| 0.00 | 3.25 | 0.00 | 1.91 | -3.78 | 297.61 | -32.08 | 96.40 | 0.5353 | 647.0 | 614.7 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -3.96 | 297.49 | -32.20 | 96.72 | 0.5373 | 383.0 | 278.3 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -3.50 | 297.37 | -32.32 | 95.85 | 0.5385 | 638.0 | 455.5 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -6.82 | 296.47 | -33.21 | 101.69 | 0.5575 | -874.0 | -700.7 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -6.64 | 296.31 | -33.38 | 101.32 | 0.5595 | -818.0 | -655.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.18 | 296.30 | -33.38 | 100.50 | 0.5585 | -794.0 | -658.9 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -3.37 | 296.35 | -33.33 | 95.47 | 0.5532 | -803.0 | -621.5 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -7.86 | 295.94 | -33.74 | 103.35 | 0.5677 | -344.0 | -388.4 | |
| 0.00 | 1.99 | 0.00 | 1.18 | -4.35 | 296.16 | -33.52 | 97.20 | 0.5572 | -751.0 | -690.8 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -7.62 | 295.85 | -33.83 | 102.89 | 0.5683 | -658.0 | -552.2 | |
| 2.71 | 8.23 | 1.62 | 4.92 | -5.02 | 295.94 | -33.75 | 98.35 | 0.5614 | -902.4 | -697.9 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -8.02 | 295.67 | -34.02 | 103.52 | 0.5719 | -553.0 | -442.9 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -5.08 | 295.64 | -34.04 | 98.39 | 0.5658 | -394.0 | -413.7 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -4.68 | 295.59 | -34.09 | 97.68 | 0.5659 | -767.0 | -581.7 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -4.92 | 294.54 | -35.15 | 97.90 | 0.5813 | -716.0 | -560.8 | |
| 0.00 | 0.63 | 0.00 | 0.41 | -11.79 | 290.94 | -38.74 | 107.96 | 0.6463 | -715.0 | -526.1 | |
| 0.00 | 0.45 | 0.00 | 0.31 | -12.36 | 287.93 | -41.75 | 107.78 | 0.6854 | -503.0 | -481.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
