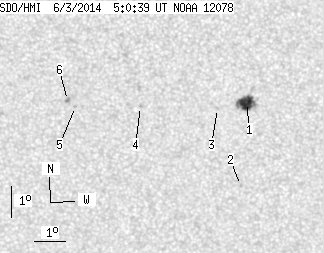

SDO HMI 2014-06-03 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.10 | 30.67 | 7.90 | 16.05 | -19.01 | 330.73 | 2.14 | 186.27 | 0.3236 | 605.6 | 211.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.10 | 23.69 | 7.90 | 12.39 | -18.90 | 331.55 | 2.96 | 188.76 | 0.3221 | 1143.5 | 627.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -21.58 | 331.40 | 2.81 | 187.20 | 0.3655 | 609.0 | 582.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -19.09 | 330.62 | 2.03 | 185.97 | 0.3233 | 846.0 | 616.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -19.02 | 328.14 | -0.45 | 178.67 | 0.3205 | -856.0 | -614.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -19.02 | 326.05 | -2.54 | 172.52 | 0.3231 | -813.0 | -658.2 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -18.83 | 325.80 | -2.79 | 171.69 | 0.3206 | -1008.0 | -829.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
