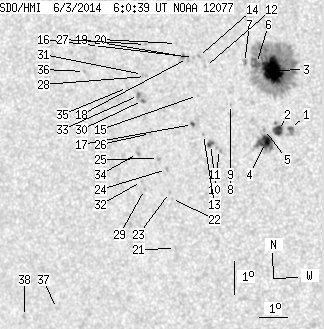

SDO HMI 2014-06-03 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.01 | 286.96 | 37.58 | 161.53 | -4.76 | 300.00 | -28.04 | 99.25 | 0.4767 | 430.4 | 309.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 5.97 | 0.66 | 3.33 | -5.98 | 301.25 | -26.79 | 102.30 | 0.4607 | 1061.0 | 754.6 | |
| 6.06 | 9.40 | 3.39 | 5.26 | -6.04 | 300.84 | -27.20 | 102.26 | 0.4671 | 1048.6 | 715.8 | |
| 36.35 | 197.87 | 20.31 | 110.55 | -4.20 | 300.72 | -27.32 | 98.32 | 0.4645 | 1296.7 | 446.7 | |
| 14.02 | 22.61 | 7.88 | 12.72 | -6.40 | 300.37 | -27.67 | 102.84 | 0.4753 | 900.3 | 486.9 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -6.00 | 300.35 | -27.69 | 102.01 | 0.4743 | 825.0 | 681.7 | |
| 5.34 | -3.00 | 3.00 | -3.00 | -3.99 | 300.17 | -27.87 | 97.73 | 0.4725 | 695.5 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.22 | -3.96 | 299.76 | -28.28 | 97.56 | 0.4787 | 707.0 | 568.2 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -5.24 | 299.22 | -28.83 | 100.04 | 0.4896 | 599.0 | 429.6 | |
| 0.00 | 2.35 | 0.00 | 1.33 | -5.54 | 299.20 | -28.84 | 100.65 | 0.4905 | 642.0 | 564.3 | |
| 0.00 | 2.71 | 0.00 | 1.55 | -6.61 | 298.75 | -29.29 | 102.63 | 0.5000 | -638.0 | -712.6 | |
| 1.90 | 4.07 | 1.09 | 2.33 | -6.45 | 298.44 | -29.60 | 102.21 | 0.5042 | -888.8 | -636.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -4.07 | 298.39 | -29.65 | 97.48 | 0.4996 | 576.0 | 437.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -6.15 | 298.21 | -29.83 | 101.53 | 0.5067 | -866.0 | -696.0 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -3.77 | 298.16 | -29.88 | 96.83 | 0.5026 | 950.0 | 838.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -4.96 | 298.07 | -29.97 | 99.16 | 0.5061 | -667.0 | -455.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -3.80 | 297.98 | -30.06 | 96.85 | 0.5054 | 751.0 | 563.3 | |
| 0.99 | 1.99 | 0.57 | 1.15 | -5.84 | 297.85 | -30.20 | 100.82 | 0.5114 | -843.7 | -692.5 | |
| 0.00 | 2.53 | 0.00 | 1.45 | -3.83 | 297.77 | -30.27 | 96.87 | 0.5086 | 832.0 | 507.2 | |
| 0.63 | 2.98 | 0.36 | 1.72 | -3.76 | 297.63 | -30.41 | 96.72 | 0.5106 | 667.7 | 566.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -3.37 | 297.40 | -30.64 | 95.90 | 0.5135 | 668.0 | 609.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -9.64 | 296.92 | -31.12 | 107.58 | 0.5365 | -790.0 | -597.6 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -8.10 | 296.93 | -31.11 | 104.77 | 0.5311 | -704.0 | -582.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -7.92 | 296.87 | -31.17 | 104.41 | 0.5313 | -750.0 | -575.9 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -7.21 | 296.82 | -31.22 | 103.08 | 0.5300 | -800.0 | -622.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -6.87 | 296.56 | -31.48 | 102.36 | 0.5328 | -905.0 | -833.9 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -6.11 | 296.33 | -31.71 | 100.87 | 0.5343 | -826.0 | -749.5 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -3.39 | 296.29 | -31.75 | 95.77 | 0.5300 | -788.0 | -536.2 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -4.37 | 296.25 | -31.79 | 97.60 | 0.5320 | -809.0 | -646.4 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -7.82 | 295.98 | -32.06 | 103.89 | 0.5439 | -784.0 | -657.4 | |
| 0.54 | 1.81 | 0.32 | 1.06 | -5.10 | 296.10 | -31.94 | 98.93 | 0.5355 | -1007.8 | -783.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -4.31 | 296.14 | -31.90 | 97.46 | 0.5335 | -649.0 | -609.8 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -7.58 | 295.89 | -32.15 | 103.42 | 0.5444 | -730.0 | -545.1 | |
| 0.00 | 2.62 | 0.00 | 1.54 | -4.95 | 295.97 | -32.07 | 98.62 | 0.5372 | -931.0 | -810.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -6.72 | 295.81 | -32.23 | 101.83 | 0.5432 | -638.0 | -539.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -4.70 | 295.58 | -32.46 | 98.08 | 0.5423 | -649.0 | -464.2 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -4.20 | 294.04 | -34.00 | 96.89 | 0.5639 | -706.0 | -568.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -11.48 | 292.27 | -35.77 | 108.64 | 0.6068 | -664.0 | -557.6 | |
| 0.00 | 1.72 | 0.00 | 1.09 | -11.72 | 291.00 | -37.04 | 108.51 | 0.6243 | -638.0 | -543.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
