SDO HMI 2014-06-03 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.40 | 299.86 | 33.92 | 166.39 | -4.82 | 300.03 | -26.37 | 99.89 | 0.4512 | 428.1 | 319.2 | |
|
previous
or next observation for the same group /

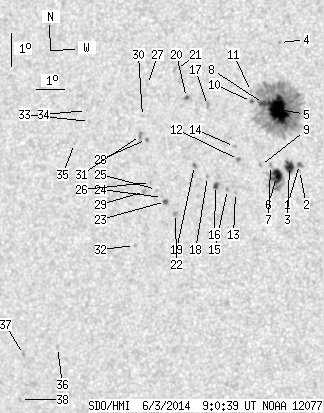

back to the solar disc SDO HMI 2014-06-03 09:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 3.44 | 0.45 | 1.89 | -5.87 | 301.42 | -24.98 | 102.89 | 0.4327 | 1118.6 | 842.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -6.06 | 301.41 | -24.99 | 103.30 | 0.4335 | 549.0 | 446.9 | |
| 6.78 | 9.31 | 3.73 | 5.13 | -5.93 | 301.08 | -25.32 | 102.87 | 0.4382 | 990.9 | 637.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -2.15 | 300.87 | -25.53 | 94.17 | 0.4336 | -914.0 | -744.4 | |
| 34.82 | 205.19 | 19.17 | 112.98 | -4.19 | 300.78 | -25.62 | 98.82 | 0.4382 | 1291.4 | 437.3 | |
| 10.31 | 26.86 | 5.70 | 14.86 | -6.24 | 300.62 | -25.78 | 103.34 | 0.4461 | 1023.2 | 501.7 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -5.90 | 300.43 | -25.96 | 102.51 | 0.4479 | 857.0 | 572.0 | |
| 3.44 | -5.00 | 1.90 | -5.00 | -4.01 | 300.28 | -26.12 | 98.26 | 0.4456 | 746.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -5.90 | 300.09 | -26.31 | 102.37 | 0.4531 | 731.0 | 658.6 | |
| 0.63 | 1.45 | 0.35 | 0.80 | -3.95 | 299.87 | -26.53 | 98.01 | 0.4518 | 548.9 | 339.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -3.64 | 299.88 | -26.52 | 97.34 | 0.4511 | 363.0 | 279.8 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -5.71 | 299.35 | -27.05 | 101.67 | 0.4639 | 906.0 | 689.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -6.72 | 299.19 | -27.21 | 103.73 | 0.4694 | -911.0 | -665.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -5.32 | 299.23 | -27.17 | 100.78 | 0.4647 | 692.0 | 568.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -6.63 | 298.92 | -27.48 | 103.42 | 0.4731 | -813.0 | -659.8 | |
| 1.99 | 3.44 | 1.12 | 1.94 | -6.50 | 298.51 | -27.89 | 102.99 | 0.4789 | -952.3 | -697.9 | |
| 0.00 | 2.80 | 0.00 | 1.58 | -4.06 | 298.36 | -28.04 | 97.86 | 0.4753 | 765.0 | 563.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -6.23 | 298.25 | -28.15 | 102.32 | 0.4820 | -755.0 | -636.4 | |
| 0.54 | 1.99 | 0.31 | 1.13 | -5.89 | 297.82 | -28.58 | 101.48 | 0.4875 | -866.5 | -725.0 | |
| 0.81 | 2.89 | 0.46 | 1.64 | -3.81 | 297.64 | -28.76 | 97.18 | 0.4858 | 818.9 | 671.8 | |
| 0.00 | 3.62 | 0.00 | 2.05 | -2.96 | 297.32 | -29.08 | 95.37 | 0.4895 | 219.0 | 506.1 | |
| 0.00 | 2.35 | 0.00 | 1.35 | -7.36 | 297.05 | -29.34 | 104.10 | 0.5031 | -862.0 | -726.8 | |
| 1.27 | 2.53 | 0.73 | 1.45 | -6.99 | 296.73 | -29.67 | 103.25 | 0.5068 | -876.7 | -639.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.86 | 296.63 | -29.77 | 102.98 | 0.5078 | -437.0 | -517.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -6.62 | 296.44 | -29.96 | 102.43 | 0.5100 | -504.0 | -385.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -6.40 | 296.24 | -30.16 | 101.94 | 0.5124 | -736.0 | -599.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -3.41 | 296.29 | -30.11 | 96.11 | 0.5057 | -511.0 | -444.9 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -5.09 | 296.18 | -30.22 | 99.38 | 0.5102 | -897.0 | -746.8 | |
| 0.00 | 2.17 | 0.00 | 1.25 | -6.68 | 296.01 | -30.39 | 102.39 | 0.5165 | -665.0 | -605.1 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -4.39 | 296.07 | -30.33 | 97.98 | 0.5104 | -697.0 | -510.4 | |
| 0.00 | 2.89 | 0.00 | 1.67 | -4.97 | 295.97 | -30.43 | 99.08 | 0.5130 | -852.0 | -695.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -8.33 | 295.52 | -30.88 | 105.31 | 0.5286 | -619.0 | -499.7 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -4.53 | 294.17 | -32.23 | 97.84 | 0.5388 | -689.0 | -606.2 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -4.20 | 294.08 | -32.32 | 97.20 | 0.5396 | -695.0 | -595.3 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -5.20 | 293.59 | -32.81 | 98.94 | 0.5484 | -439.0 | -337.2 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -11.47 | 292.34 | -34.06 | 109.39 | 0.5841 | -557.0 | -500.5 | |
| 0.00 | 1.99 | 0.00 | 1.23 | -11.68 | 291.02 | -35.38 | 109.15 | 0.6024 | -685.0 | -507.2 | |
| 0.00 | 2.26 | 0.00 | 1.41 | -13.08 | 290.68 | -35.72 | 111.22 | 0.6122 | -44.0 | -90.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
