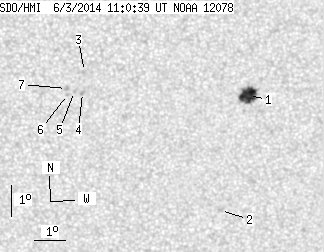

SDO HMI 2014-06-03 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.45 | 33.73 | 9.70 | 17.73 | -19.11 | 330.33 | 5.03 | 194.26 | 0.3352 | 497.5 | -54.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.45 | 23.06 | 9.70 | 12.13 | -18.93 | 331.78 | 6.48 | 198.55 | 0.3370 | 1122.3 | 668.2 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -22.66 | 331.01 | 5.71 | 193.61 | 0.3917 | 653.0 | 576.9 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -18.16 | 326.49 | 1.19 | 183.70 | 0.3072 | -416.0 | -483.2 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -18.83 | 326.43 | 1.13 | 183.37 | 0.3183 | -846.0 | -710.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -18.80 | 326.17 | 0.87 | 182.61 | 0.3175 | -830.0 | -670.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -18.89 | 325.95 | 0.65 | 181.93 | 0.3190 | -792.0 | -591.8 | |
| 0.00 | 2.44 | 0.00 | 1.27 | -18.70 | 325.92 | 0.61 | 181.85 | 0.3158 | -844.0 | -629.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
