SDO HMI 2014-06-03 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.93 | 302.03 | 32.50 | 164.37 | -4.75 | 300.18 | -24.02 | 100.67 | 0.4147 | 500.3 | 318.3 | |
|
previous
or next observation for the same group /

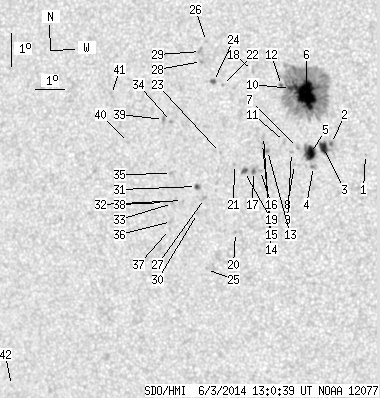

back to the solar disc SDO HMI 2014-06-03 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.39 | -6.09 | 302.75 | -21.46 | 105.36 | 0.3788 | 664.0 | 473.4 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -5.75 | 301.64 | -22.56 | 103.84 | 0.3949 | 1158.0 | 928.1 | |
| 6.24 | 10.40 | 3.37 | 5.61 | -5.87 | 301.37 | -22.83 | 103.99 | 0.3995 | 1054.4 | 652.0 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -6.45 | 301.01 | -23.19 | 105.19 | 0.4072 | 598.0 | 547.6 | |
| 9.76 | 16.09 | 5.29 | 8.72 | -6.05 | 300.93 | -23.27 | 104.19 | 0.4070 | 1046.0 | 631.7 | |
| 36.98 | 209.20 | 20.00 | 113.15 | -4.25 | 300.87 | -23.33 | 99.77 | 0.4025 | 1283.6 | 425.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -5.87 | 300.50 | -23.70 | 103.52 | 0.4130 | 769.0 | 552.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -6.39 | 300.38 | -23.83 | 104.68 | 0.4167 | 507.0 | 409.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -6.02 | 300.29 | -23.91 | 103.78 | 0.4167 | 758.0 | 515.4 | |
| 2.17 | -6.00 | 1.18 | -6.00 | -4.07 | 300.34 | -23.86 | 99.13 | 0.4104 | 777.4 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.53 | -5.68 | 300.08 | -24.13 | 102.88 | 0.4190 | 738.0 | 547.7 | |
| 0.54 | -6.00 | 0.30 | -6.00 | -3.98 | 300.04 | -24.16 | 98.81 | 0.4149 | 529.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -5.96 | 299.49 | -24.71 | 103.23 | 0.4289 | 911.0 | 662.2 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -5.53 | 299.38 | -24.82 | 102.19 | 0.4293 | 874.0 | 649.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.74 | 299.33 | -24.87 | 102.66 | 0.4306 | 770.0 | 684.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -6.57 | 299.22 | -24.98 | 104.48 | 0.4351 | -576.0 | -542.4 | |
| 0.63 | 3.71 | 0.35 | 2.04 | -6.60 | 298.99 | -25.22 | 104.43 | 0.4388 | -944.6 | -761.9 | |
| 0.00 | 2.44 | 0.00 | 1.34 | -3.52 | 299.08 | -25.12 | 97.43 | 0.4290 | 619.0 | 434.5 | |
| 1.54 | 3.16 | 0.85 | 1.75 | -6.60 | 298.68 | -25.52 | 104.27 | 0.4435 | -955.9 | -694.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -8.46 | 298.25 | -25.95 | 108.07 | 0.4572 | -797.0 | -630.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -6.38 | 298.35 | -25.85 | 103.64 | 0.4477 | -798.0 | -626.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -3.97 | 298.05 | -26.15 | 98.18 | 0.4460 | 715.0 | 562.0 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -6.01 | 297.90 | -26.31 | 102.63 | 0.4535 | -761.0 | -671.7 | |
| 0.99 | 2.62 | 0.55 | 1.45 | -3.84 | 297.75 | -26.45 | 97.83 | 0.4504 | 885.9 | 647.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -9.60 | 297.16 | -27.04 | 109.74 | 0.4782 | -721.0 | -643.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -2.63 | 297.55 | -26.65 | 95.08 | 0.4517 | 629.0 | 467.2 | |
| 0.00 | 2.44 | 0.00 | 1.37 | -7.42 | 297.26 | -26.94 | 105.33 | 0.4678 | -676.0 | -594.3 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -3.23 | 297.36 | -26.84 | 96.39 | 0.4554 | 775.0 | 584.3 | |
| 0.00 | 4.70 | 0.00 | 2.61 | -2.93 | 297.34 | -26.86 | 95.71 | 0.4554 | 794.0 | 637.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -7.88 | 296.99 | -27.21 | 106.15 | 0.4735 | -706.0 | -580.8 | |
| 1.08 | 2.62 | 0.61 | 1.47 | -7.05 | 297.01 | -27.19 | 104.44 | 0.4702 | -809.2 | -601.0 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -7.48 | 296.50 | -27.71 | 105.08 | 0.4794 | -663.0 | -479.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -7.57 | 296.14 | -28.06 | 105.10 | 0.4849 | -716.0 | -628.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -5.06 | 296.26 | -27.94 | 100.00 | 0.4759 | -880.0 | -750.7 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -6.65 | 296.17 | -28.03 | 103.25 | 0.4815 | -801.0 | -657.2 | |
| 0.00 | 2.35 | 0.00 | 1.33 | -8.12 | 296.07 | -28.14 | 106.17 | 0.4880 | -447.0 | -422.0 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -8.36 | 295.98 | -28.22 | 106.62 | 0.4903 | -621.0 | -396.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.53 | 295.87 | -28.34 | 104.91 | 0.4889 | -544.0 | -427.8 | |
| 0.00 | 3.07 | 0.00 | 1.73 | -5.00 | 295.99 | -28.22 | 99.79 | 0.4799 | -917.0 | -681.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -5.69 | 294.73 | -29.48 | 100.80 | 0.5004 | -131.0 | -222.1 | |
| 0.00 | 2.35 | 0.00 | 1.35 | -4.23 | 294.20 | -30.00 | 97.76 | 0.5052 | -447.0 | -456.2 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -13.17 | 289.66 | -34.54 | 111.94 | 0.5974 | -577.0 | -490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
