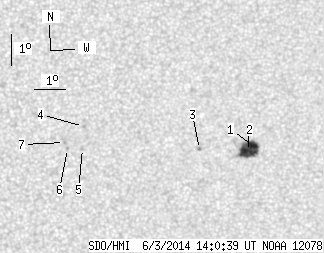

SDO HMI 2014-06-03 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.97 | 35.98 | 11.60 | 18.95 | -18.88 | 330.99 | 7.34 | 200.67 | 0.3425 | 545.9 | 43.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.59 | 29.29 | 4.53 | 15.46 | -18.80 | 331.97 | 8.32 | 203.43 | 0.3458 | 1256.8 | 672.6 | |
| 13.38 | -1.00 | 7.07 | -1.00 | -18.99 | 331.81 | 8.16 | 202.82 | 0.3477 | 1059.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.92 | 330.26 | 6.60 | 198.89 | 0.3376 | -953.0 | -725.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -18.18 | 326.50 | 2.85 | 188.79 | 0.3107 | -858.0 | -645.2 | |
| 0.00 | 2.17 | 0.00 | 1.13 | -18.89 | 326.48 | 2.83 | 188.37 | 0.3222 | -684.0 | -570.1 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -18.89 | 326.00 | 2.35 | 186.96 | 0.3212 | -815.0 | -663.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -18.69 | 325.90 | 2.25 | 186.75 | 0.3178 | -812.0 | -711.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
