SDO HMI 2014-06-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.79 | 290.68 | 28.11 | 155.69 | -4.88 | 300.19 | -21.80 | 101.95 | 0.3800 | 458.2 | 345.9 | |
|
previous
or next observation for the same group /

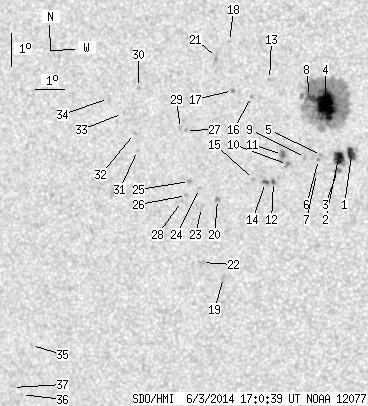

back to the solar disc SDO HMI 2014-06-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.51 | 11.75 | 3.45 | 6.23 | -5.78 | 301.70 | -20.29 | 105.33 | 0.3593 | 1098.6 | 695.1 | |
| 9.22 | 13.47 | 4.91 | 7.17 | -5.87 | 301.27 | -20.72 | 105.28 | 0.3664 | 1051.7 | 573.8 | |
| 0.00 | 4.07 | 0.00 | 2.17 | -6.27 | 301.22 | -20.77 | 106.30 | 0.3689 | 889.0 | 676.5 | |
| 33.35 | 204.99 | 17.75 | 109.08 | -4.28 | 300.90 | -21.09 | 100.82 | 0.3669 | 1347.8 | 481.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.81 | 300.71 | -21.28 | 104.76 | 0.3749 | 627.0 | 547.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.93 | 300.61 | -21.38 | 105.01 | 0.3770 | 908.0 | 667.4 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -6.36 | 300.53 | -21.46 | 106.05 | 0.3800 | 541.0 | 416.2 | |
| 0.27 | -4.00 | 0.14 | -4.00 | -4.01 | 300.38 | -21.61 | 99.85 | 0.3744 | 822.3 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -5.87 | 300.19 | -21.80 | 104.59 | 0.3834 | 748.0 | 584.0 | |
| 0.00 | 2.98 | 0.00 | 1.61 | -6.08 | 299.58 | -22.41 | 104.76 | 0.3937 | 840.0 | 679.3 | |
| 1.27 | 5.69 | 0.68 | 3.07 | -5.77 | 299.43 | -22.56 | 103.91 | 0.3949 | 917.0 | 613.0 | |
| 0.90 | 2.08 | 0.49 | 1.12 | -6.60 | 299.09 | -22.90 | 105.73 | 0.4032 | -909.3 | -711.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -3.48 | 299.08 | -22.91 | 98.02 | 0.3941 | 891.0 | 681.8 | |
| 1.27 | 2.53 | 0.69 | 1.37 | -6.63 | 298.83 | -23.17 | 105.64 | 0.4075 | -940.1 | -713.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -6.53 | 298.43 | -23.56 | 105.19 | 0.4132 | -749.0 | -575.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -4.00 | 298.47 | -23.52 | 99.10 | 0.4049 | 778.0 | 592.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -3.81 | 297.84 | -24.15 | 98.44 | 0.4144 | 961.0 | 753.3 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -2.32 | 297.78 | -24.21 | 94.82 | 0.4130 | 744.0 | 608.4 | |
| 0.00 | 2.89 | 0.00 | 1.60 | -9.54 | 297.22 | -24.77 | 111.15 | 0.4448 | -732.0 | -627.4 | |
| 0.00 | 2.62 | 0.00 | 1.44 | -7.14 | 297.19 | -24.80 | 105.88 | 0.4346 | -934.0 | -688.0 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -2.81 | 297.33 | -24.66 | 95.90 | 0.4207 | 638.0 | 617.0 | |
| 0.00 | 3.52 | 0.00 | 1.96 | -9.07 | 296.51 | -25.48 | 109.67 | 0.4530 | -677.0 | -621.0 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -7.38 | 296.63 | -25.36 | 106.10 | 0.4439 | -655.0 | -566.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -6.80 | 296.60 | -25.39 | 104.81 | 0.4423 | -775.0 | -618.1 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -6.59 | 296.27 | -25.72 | 104.17 | 0.4465 | -972.0 | -727.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -7.01 | 296.14 | -25.85 | 105.04 | 0.4499 | -796.0 | -627.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -5.03 | 296.21 | -25.78 | 100.69 | 0.4427 | -827.0 | -727.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -7.20 | 295.96 | -26.03 | 105.34 | 0.4533 | -511.0 | -449.1 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -4.97 | 296.05 | -25.94 | 100.49 | 0.4451 | -666.0 | -596.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -3.71 | 294.66 | -27.33 | 97.33 | 0.4638 | -742.0 | -646.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -5.63 | 294.54 | -27.45 | 101.38 | 0.4698 | -701.0 | -452.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -5.11 | 294.47 | -27.53 | 100.26 | 0.4697 | -792.0 | -654.5 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -4.50 | 294.08 | -27.91 | 98.86 | 0.4742 | -543.0 | -526.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -4.04 | 293.61 | -28.38 | 97.78 | 0.4804 | -645.0 | -470.5 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -11.61 | 290.26 | -31.73 | 110.81 | 0.5533 | -568.0 | -421.8 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -13.13 | 289.68 | -32.31 | 113.08 | 0.5680 | -585.0 | -403.6 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -12.91 | 289.38 | -32.62 | 112.55 | 0.5710 | -585.0 | -581.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
