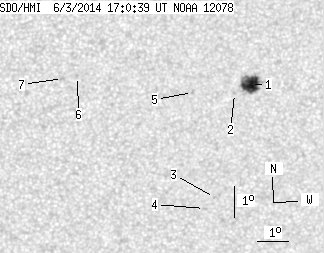

SDO HMI 2014-06-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.43 | 37.32 | 10.84 | 19.81 | -19.10 | 331.27 | 9.28 | 205.30 | 0.3580 | 713.1 | 297.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.43 | 29.37 | 10.84 | 15.58 | -18.88 | 331.97 | 9.98 | 207.32 | 0.3589 | 1125.9 | 702.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -19.17 | 331.47 | 9.48 | 205.76 | 0.3594 | 827.0 | 683.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.55 | 331.01 | 9.02 | 200.99 | 0.4060 | 786.0 | 584.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -22.91 | 330.70 | 8.71 | 200.00 | 0.4097 | 643.0 | 523.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -19.14 | 330.10 | 8.11 | 202.50 | 0.3497 | -812.0 | -597.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -18.62 | 326.36 | 4.37 | 192.99 | 0.3228 | -698.0 | -597.6 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -18.69 | 325.88 | 3.89 | 191.56 | 0.3221 | -942.0 | -706.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
