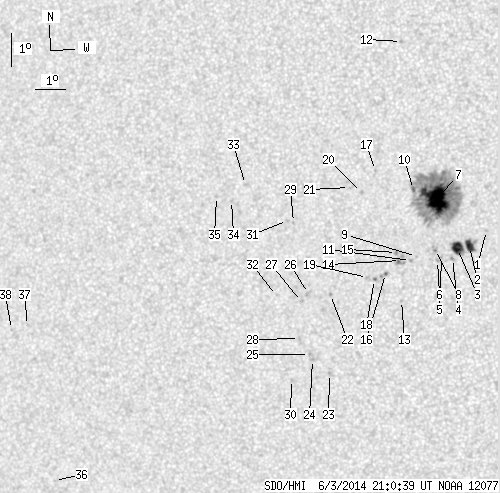

SDO HMI 2014-06-03 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.02 | 275.07 | 30.95 | 145.03 | -4.75 | 300.36 | -19.41 | 103.00 | 0.3414 | 532.9 | 341.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.23 | 302.53 | -17.24 | 106.10 | 0.3085 | 767.0 | 652.0 | |
| 6.33 | 10.76 | 3.31 | 5.62 | -5.72 | 301.97 | -17.80 | 107.12 | 0.3197 | 1133.2 | 748.4 | |
| 9.76 | 12.74 | 5.11 | 6.68 | -5.78 | 301.58 | -18.19 | 106.96 | 0.3261 | 1086.3 | 627.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -6.08 | 301.41 | -18.36 | 107.71 | 0.3302 | 866.0 | 699.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -6.05 | 301.06 | -18.71 | 107.32 | 0.3357 | 830.0 | 690.1 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -6.14 | 300.92 | -18.85 | 107.47 | 0.3382 | 621.0 | 542.7 | |
| 41.67 | 202.56 | 21.86 | 106.26 | -4.25 | 300.95 | -18.82 | 101.97 | 0.3302 | 1328.3 | 459.7 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.80 | 300.87 | -18.90 | 106.47 | 0.3375 | 855.0 | 581.9 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -6.02 | 300.25 | -19.52 | 106.58 | 0.3482 | 834.0 | 692.5 | |
| 0.90 | -7.00 | 0.48 | -7.00 | -3.97 | 300.22 | -19.55 | 100.75 | 0.3413 | 440.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.14 | 300.05 | -19.72 | 106.77 | 0.3519 | 896.0 | 649.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 0.53 | 299.88 | -19.89 | 87.45 | 0.3419 | 833.0 | 646.3 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -7.36 | 299.70 | -20.07 | 109.77 | 0.3632 | 779.0 | 619.1 | |
| 0.00 | 5.51 | 0.00 | 2.92 | -6.14 | 299.72 | -20.05 | 106.52 | 0.3570 | 691.0 | 651.6 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -5.89 | 299.60 | -20.17 | 105.77 | 0.3579 | 924.0 | 743.9 | |
| 0.36 | 2.80 | 0.19 | 1.49 | -6.53 | 299.22 | -20.55 | 107.20 | 0.3667 | -938.0 | -648.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -3.39 | 299.00 | -20.77 | 98.56 | 0.3596 | 680.0 | 581.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.71 | 298.85 | -20.92 | 107.40 | 0.3732 | -819.0 | -715.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.65 | 298.62 | -21.15 | 107.07 | 0.3765 | -339.0 | -325.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -4.06 | 298.52 | -21.25 | 100.19 | 0.3688 | 661.0 | 505.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -3.90 | 298.13 | -21.64 | 99.61 | 0.3747 | 737.0 | 565.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -7.17 | 297.37 | -22.39 | 107.48 | 0.3980 | -909.0 | -783.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -9.59 | 297.19 | -22.58 | 113.04 | 0.4131 | -843.0 | -687.7 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -9.16 | 296.65 | -23.12 | 111.61 | 0.4187 | -806.0 | -624.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -9.01 | 296.56 | -23.21 | 111.19 | 0.4192 | -847.0 | -710.5 | |
| 0.00 | 2.71 | 0.00 | 1.47 | -7.14 | 296.64 | -23.12 | 106.92 | 0.4090 | -583.0 | -671.9 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -7.38 | 296.40 | -23.37 | 107.33 | 0.4139 | -854.0 | -674.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.51 | 296.26 | -23.51 | 109.85 | 0.4212 | -822.0 | -680.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -4.96 | 296.25 | -23.52 | 101.49 | 0.4074 | -800.0 | -692.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -9.78 | 295.90 | -23.87 | 112.37 | 0.4330 | -585.0 | -483.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -4.90 | 296.05 | -23.72 | 101.26 | 0.4104 | -691.0 | -562.8 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -7.19 | 295.57 | -24.20 | 106.38 | 0.4257 | -601.0 | -485.0 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -3.80 | 294.68 | -25.09 | 98.16 | 0.4292 | -848.0 | -652.3 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -4.29 | 294.19 | -25.58 | 99.12 | 0.4378 | -731.0 | -550.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -4.16 | 293.69 | -26.08 | 98.69 | 0.4454 | -723.0 | -581.0 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -12.87 | 287.20 | -32.57 | 112.53 | 0.5703 | -575.0 | -440.8 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -8.08 | 286.78 | -32.99 | 104.10 | 0.5579 | -697.0 | -525.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -8.20 | 286.18 | -33.59 | 104.10 | 0.5667 | -633.0 | -536.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
