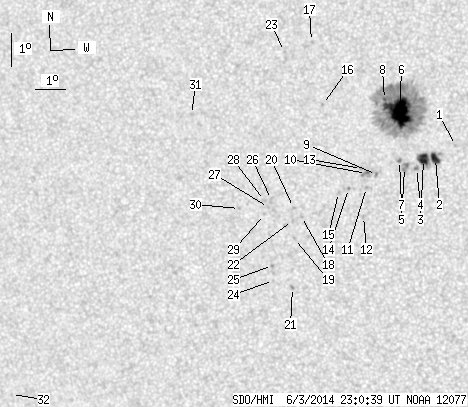

SDO HMI 2014-06-03 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.21 | 302.14 | 31.36 | 157.94 | -4.73 | 300.66 | -18.00 | 103.89 | 0.3190 | 586.4 | 337.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-03 23:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.56 | -5.28 | 302.76 | -15.90 | 107.55 | 0.2875 | 912.0 | 688.9 | |
| 5.88 | 25.40 | 3.05 | 13.20 | -5.68 | 302.11 | -16.55 | 108.19 | 0.2997 | 1126.2 | 595.2 | |
| 8.50 | -2.00 | 4.42 | -2.00 | -5.71 | 301.72 | -16.94 | 107.91 | 0.3060 | 1109.2 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -5.98 | 301.49 | -17.17 | 108.54 | 0.3110 | 779.0 | 663.3 | |
| 0.00 | 6.15 | 0.00 | 3.21 | -5.95 | 301.11 | -17.55 | 108.08 | 0.3169 | 588.0 | 576.4 | |
| 44.93 | 229.99 | 23.42 | 119.86 | -4.24 | 301.00 | -17.66 | 102.70 | 0.3115 | 1324.8 | 413.3 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -5.73 | 300.95 | -17.71 | 107.29 | 0.3183 | 950.0 | 684.9 | |
| 0.90 | -6.00 | 0.47 | -6.00 | -3.87 | 300.53 | -18.13 | 101.26 | 0.3180 | 597.2 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -6.16 | 300.20 | -18.46 | 107.89 | 0.3323 | 718.0 | 583.0 | |
| 0.00 | 4.70 | 0.00 | 2.47 | -6.13 | 299.88 | -18.78 | 107.52 | 0.3372 | 894.0 | 745.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -6.56 | 299.86 | -18.80 | 108.72 | 0.3395 | -1000.0 | -801.3 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -7.44 | 299.72 | -18.94 | 111.06 | 0.3463 | 755.0 | 613.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -5.97 | 299.72 | -18.94 | 106.96 | 0.3389 | 849.0 | 726.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -6.58 | 299.28 | -19.38 | 108.30 | 0.3488 | -838.0 | -687.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -6.71 | 298.95 | -19.71 | 108.36 | 0.3545 | -904.0 | -545.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -4.02 | 298.52 | -20.14 | 100.63 | 0.3510 | 735.0 | 549.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -2.10 | 298.20 | -20.46 | 95.07 | 0.3521 | 747.0 | 610.6 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.44 | 297.70 | -20.96 | 109.25 | 0.3773 | -810.0 | -640.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -8.11 | 297.43 | -21.23 | 110.72 | 0.3848 | -847.0 | -710.5 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -7.16 | 297.45 | -21.21 | 108.36 | 0.3798 | -783.0 | -659.2 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -9.62 | 297.27 | -21.39 | 114.20 | 0.3958 | -947.0 | -775.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -7.56 | 297.40 | -21.26 | 109.32 | 0.3825 | -746.0 | -614.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -2.40 | 297.32 | -21.34 | 95.70 | 0.3670 | 736.0 | 557.8 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -9.40 | 296.66 | -22.00 | 113.12 | 0.4036 | -612.0 | -479.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -8.94 | 296.66 | -22.00 | 112.04 | 0.4010 | -787.0 | -658.8 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -6.91 | 296.74 | -21.92 | 107.22 | 0.3896 | -679.0 | -692.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -7.16 | 296.63 | -22.03 | 107.74 | 0.3924 | -909.0 | -745.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.94 | 296.51 | -22.15 | 107.13 | 0.3934 | -821.0 | -584.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -7.37 | 296.48 | -22.18 | 108.16 | 0.3956 | -740.0 | -646.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -7.19 | 295.66 | -23.00 | 107.15 | 0.4073 | -750.0 | -583.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -4.31 | 294.19 | -24.47 | 99.58 | 0.4206 | -719.0 | -604.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -12.90 | 287.19 | -31.47 | 113.21 | 0.5559 | -616.0 | -470.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
