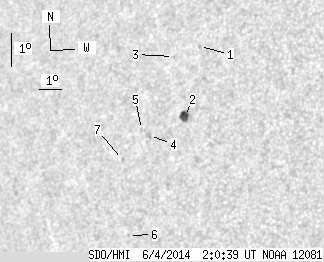

SDO HMI 2014-06-04 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.61 | 14.10 | 3.95 | 10.06 | 3.61 | 271.12 | -45.88 | 84.65 | 0.7220 | -625.5 | -498.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.70 | 6.04 | 272.30 | -44.71 | 81.13 | 0.7103 | -603.0 | -506.0 | |
| 5.61 | 7.96 | 3.95 | 5.61 | 3.90 | 271.83 | -45.17 | 84.20 | 0.7136 | -760.0 | -515.7 | |
| 0.00 | 0.27 | 0.00 | 0.19 | 5.74 | 271.19 | -45.81 | 81.72 | 0.7233 | -493.0 | -448.0 | |
| 0.00 | 1.90 | 0.00 | 1.37 | 3.33 | 270.32 | -46.68 | 85.13 | 0.7312 | -626.0 | -585.4 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 3.51 | 269.96 | -47.05 | 84.91 | 0.7357 | -420.0 | -380.6 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 0.29 | 269.48 | -47.52 | 89.32 | 0.7399 | -488.0 | -427.9 | |
| 0.00 | 1.45 | 0.00 | 1.07 | 2.60 | 269.15 | -47.86 | 86.20 | 0.7446 | -592.0 | -460.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
