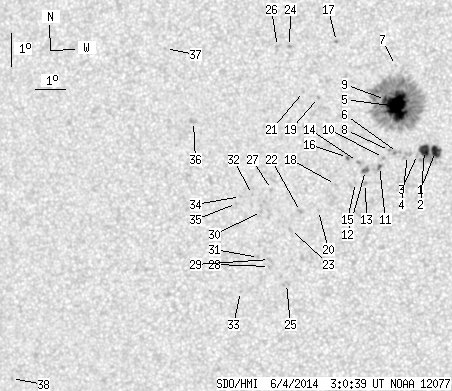

SDO HMI 2014-06-04 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.53 | 310.49 | 28.58 | 160.41 | -4.75 | 300.68 | -15.77 | 105.90 | 0.2834 | 512.5 | 363.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.51 | 28.40 | 3.85 | 14.59 | -5.62 | 302.27 | -14.18 | 110.82 | 0.2619 | 1164.5 | 580.8 | |
| 8.23 | -1.00 | 4.23 | -1.00 | -5.59 | 301.93 | -14.52 | 110.26 | 0.2672 | 1104.9 | 999999 | |
| 0.00 | 2.80 | 0.00 | 1.44 | -5.71 | 301.70 | -14.75 | 110.41 | 0.2715 | 599.0 | 448.5 | |
| 0.00 | 5.34 | 0.00 | 2.75 | -5.74 | 301.39 | -15.07 | 110.13 | 0.2767 | 702.0 | 625.1 | |
| 37.44 | 224.47 | 19.28 | 115.60 | -4.24 | 301.11 | -15.34 | 104.61 | 0.2739 | 1404.6 | 474.1 | |
| 0.00 | 2.80 | 0.00 | 1.45 | -5.65 | 301.07 | -15.38 | 109.45 | 0.2811 | 655.0 | 700.7 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -3.00 | 301.07 | -15.38 | 100.06 | 0.2703 | -503.0 | -380.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.59 | 300.82 | -15.63 | 108.96 | 0.2848 | 845.0 | 564.2 | |
| 0.27 | -5.00 | 0.14 | -5.00 | -4.03 | 300.73 | -15.72 | 103.53 | 0.2792 | 978.7 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -5.80 | 300.62 | -15.83 | 109.45 | 0.2891 | 739.0 | 491.1 | |
| 0.63 | 2.53 | 0.33 | 1.31 | -6.07 | 300.49 | -15.96 | 110.20 | 0.2927 | 856.1 | 517.5 | |
| 1.45 | 4.43 | 0.75 | 2.30 | -6.19 | 300.04 | -16.41 | 110.08 | 0.3004 | 915.6 | 689.2 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -6.59 | 300.02 | -16.43 | 111.32 | 0.3029 | -938.0 | -732.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.92 | 299.79 | -16.66 | 108.95 | 0.3028 | 786.0 | 694.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.56 | 299.71 | -16.75 | 110.86 | 0.3077 | -625.0 | -546.3 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -5.80 | 299.48 | -16.98 | 108.25 | 0.3072 | 863.0 | 772.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -2.26 | 299.21 | -17.25 | 96.59 | 0.2995 | -889.0 | -729.8 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -6.62 | 299.06 | -17.39 | 110.35 | 0.3180 | -600.0 | -382.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -3.96 | 298.60 | -17.85 | 101.81 | 0.3138 | 863.0 | 628.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -7.42 | 298.48 | -17.97 | 112.05 | 0.3315 | -764.0 | -582.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -3.78 | 298.12 | -18.33 | 100.96 | 0.3210 | 769.0 | 534.2 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -7.44 | 297.90 | -18.55 | 111.53 | 0.3406 | -964.0 | -815.3 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -8.00 | 297.55 | -18.90 | 112.67 | 0.3492 | -770.0 | -565.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -2.41 | 297.70 | -18.75 | 96.55 | 0.3247 | 951.0 | 835.6 | |
| 0.00 | 3.53 | 0.00 | 1.87 | -9.66 | 297.33 | -19.12 | 116.73 | 0.3632 | -798.0 | -634.7 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -2.41 | 297.31 | -19.14 | 96.42 | 0.3311 | 855.0 | 624.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -6.77 | 296.99 | -19.46 | 108.82 | 0.3510 | -744.0 | -627.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.13 | 296.80 | -19.65 | 114.83 | 0.3674 | -782.0 | -716.4 | |
| 0.00 | 2.44 | 0.00 | 1.30 | -8.92 | 296.82 | -19.63 | 114.30 | 0.3658 | -813.0 | -601.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -7.44 | 296.63 | -19.82 | 110.31 | 0.3600 | -762.0 | -616.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.85 | 296.46 | -19.99 | 113.78 | 0.3707 | -734.0 | -576.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -6.92 | 296.37 | -20.09 | 108.70 | 0.3615 | -803.0 | -618.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -9.90 | 295.80 | -20.65 | 115.66 | 0.3870 | -721.0 | -574.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -6.98 | 295.97 | -20.48 | 108.54 | 0.3679 | -689.0 | -567.6 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -7.19 | 295.83 | -20.62 | 108.98 | 0.3711 | -521.0 | -420.6 | |
| 0.00 | 3.35 | 0.00 | 1.79 | -4.68 | 294.52 | -21.93 | 101.63 | 0.3816 | -799.0 | -577.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -2.46 | 293.66 | -22.79 | 95.59 | 0.3905 | -722.0 | -556.5 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -12.57 | 287.72 | -28.73 | 114.42 | 0.5172 | -792.0 | -587.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
