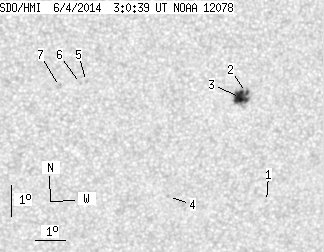

SDO HMI 2014-06-04 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.11 | 25.77 | 7.66 | 13.94 | -19.01 | 331.09 | 14.63 | 216.45 | 0.4025 | 550.2 | 173.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.25 | -22.27 | 333.40 | 16.94 | 215.78 | 0.4631 | 508.0 | 350.2 | |
| 1.45 | 19.53 | 0.79 | 10.60 | -18.74 | 332.33 | 15.88 | 219.33 | 0.4106 | 864.5 | 723.0 | |
| 12.66 | -2.00 | 6.87 | -2.00 | -18.90 | 332.15 | 15.69 | 218.75 | 0.4106 | 1051.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.11 | 330.04 | 13.59 | 210.37 | 0.4323 | 718.0 | 626.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -18.38 | 327.03 | 10.58 | 209.31 | 0.3574 | -713.0 | -569.6 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -18.45 | 326.84 | 10.38 | 208.78 | 0.3567 | -803.0 | -660.3 | |
| 0.00 | 2.62 | 0.00 | 1.39 | -18.54 | 326.16 | 9.71 | 207.06 | 0.3529 | -653.0 | -599.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
