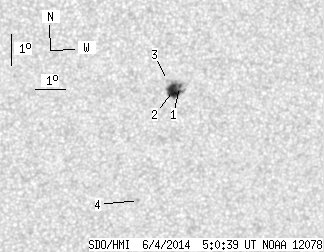

SDO HMI 2014-06-04 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.93 | 22.88 | 7.60 | 12.50 | -19.06 | 332.11 | 16.76 | 220.29 | 0.4237 | 972.2 | 698.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.18 | 20.71 | 0.64 | 11.31 | -18.76 | 332.34 | 16.99 | 221.13 | 0.4224 | 895.2 | 734.2 | |
| 12.75 | -1.00 | 6.96 | -1.00 | -18.88 | 332.15 | 16.80 | 220.61 | 0.4219 | 1062.2 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.56 | 331.92 | 16.57 | 220.75 | 0.4158 | 606.0 | 519.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -22.46 | 331.36 | 16.01 | 214.03 | 0.4572 | 761.0 | 634.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
