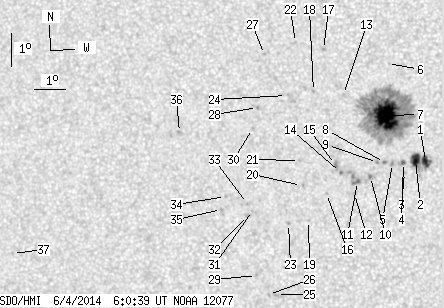

SDO HMI 2014-06-04 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.70 | 315.47 | 29.99 | 161.58 | -4.62 | 300.82 | -13.98 | 107.38 | 0.2538 | 563.8 | 383.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.16 | 26.96 | 2.63 | 13.74 | -5.60 | 302.36 | -12.45 | 113.36 | 0.2348 | 1222.7 | 632.4 | |
| 8.32 | -1.00 | 4.25 | -1.00 | -5.57 | 302.04 | -12.76 | 112.73 | 0.2394 | 1113.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.93 | 301.69 | -13.12 | 113.57 | 0.2474 | 575.0 | 373.3 | |
| 0.72 | 2.89 | 0.37 | 1.48 | -5.63 | 301.67 | -13.14 | 112.38 | 0.2458 | 917.6 | 645.2 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -5.66 | 301.32 | -13.49 | 111.99 | 0.2514 | 871.0 | 707.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -2.61 | 301.22 | -13.59 | 99.82 | 0.2392 | -433.0 | -434.5 | |
| 43.96 | 234.19 | 22.46 | 119.68 | -4.19 | 301.16 | -13.64 | 106.17 | 0.2460 | 1393.9 | 448.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -5.63 | 301.07 | -13.74 | 111.51 | 0.2552 | 875.0 | 731.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -5.63 | 300.85 | -13.96 | 111.21 | 0.2586 | 769.0 | 539.0 | |
| 0.00 | 2.35 | 0.00 | 1.21 | -6.05 | 300.62 | -14.19 | 112.42 | 0.2649 | 1066.0 | 749.8 | |
| 0.54 | 9.23 | 0.28 | 4.75 | -6.21 | 300.20 | -14.60 | 112.38 | 0.2723 | 1034.5 | 750.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -6.57 | 300.10 | -14.71 | 113.48 | 0.2763 | -859.0 | -669.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -3.55 | 299.82 | -14.98 | 102.47 | 0.2654 | 453.0 | 318.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.93 | 299.67 | -15.13 | 110.76 | 0.2789 | 860.0 | 756.3 | |
| 0.00 | 2.99 | 0.00 | 1.54 | -5.68 | 299.52 | -15.29 | 109.75 | 0.2800 | 986.0 | 790.8 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -6.57 | 299.21 | -15.60 | 112.30 | 0.2900 | -723.0 | -556.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -2.18 | 299.21 | -15.59 | 97.03 | 0.2719 | -940.0 | -648.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -3.46 | 298.88 | -15.93 | 101.44 | 0.2808 | 865.0 | 697.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -7.40 | 298.60 | -16.20 | 114.12 | 0.3045 | -773.0 | -575.7 | |
| 0.00 | 0.45 | 0.00 | 0.23 | -6.32 | 298.42 | -16.39 | 110.59 | 0.3008 | -525.0 | -564.8 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -5.56 | 298.38 | -16.43 | 108.11 | 0.2974 | -767.0 | -612.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -1.96 | 298.33 | -16.48 | 95.92 | 0.2863 | 764.0 | 550.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.49 | 297.96 | -16.85 | 113.59 | 0.3149 | -912.0 | -713.2 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -3.58 | 298.02 | -16.79 | 101.29 | 0.2953 | 419.0 | 459.2 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -9.67 | 297.47 | -17.34 | 119.05 | 0.3375 | -703.0 | -705.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.67 | 297.21 | -17.60 | 118.70 | 0.3412 | -789.0 | -638.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -2.33 | 297.34 | -17.47 | 96.80 | 0.3034 | 903.0 | 780.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -3.94 | 297.08 | -17.72 | 101.88 | 0.3117 | -893.0 | -726.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -9.08 | 296.85 | -17.95 | 116.70 | 0.3422 | -801.0 | -618.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -4.58 | 296.91 | -17.90 | 103.76 | 0.3168 | -782.0 | -595.4 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -7.08 | 296.82 | -17.99 | 111.15 | 0.3300 | -832.0 | -823.2 | |
| 0.00 | 2.62 | 0.00 | 1.38 | -7.24 | 296.65 | -18.15 | 111.41 | 0.3335 | -777.0 | -707.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.87 | 296.67 | -18.14 | 110.38 | 0.3312 | -741.0 | -601.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.65 | 295.97 | -18.84 | 109.11 | 0.3409 | -820.0 | -624.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -7.05 | 295.82 | -18.99 | 110.08 | 0.3453 | -520.0 | -448.9 | |
| 0.00 | 2.08 | 0.00 | 1.10 | -4.69 | 294.54 | -20.26 | 102.59 | 0.3552 | -905.0 | -595.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -8.38 | 288.79 | -26.02 | 108.03 | 0.4582 | -671.0 | -501.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
