SDO HMI 2014-06-04 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.28 | 35.82 | 9.71 | 20.19 | -19.78 | 332.54 | 21.02 | 225.21 | 0.4774 | 784.0 | 547.0 | |
|
previous
or next observation for the same group /

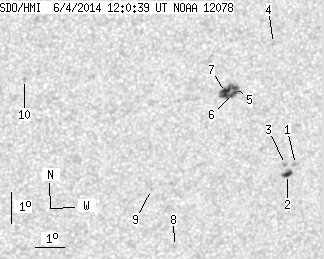

back to the solar disc SDO HMI 2014-06-04 12:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.36 | -21.18 | 334.91 | 23.39 | 226.02 | 0.5165 | 756.0 | 613.9 | |
| 3.71 | 5.70 | 2.14 | 3.29 | -21.50 | 334.68 | 23.16 | 225.26 | 0.5172 | 872.9 | 660.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -21.18 | 334.56 | 23.04 | 225.60 | 0.5127 | 935.0 | 780.2 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -17.28 | 333.57 | 22.06 | 230.74 | 0.4649 | 686.0 | 576.7 | |
| 2.26 | 19.90 | 1.26 | 11.12 | -18.69 | 332.41 | 20.89 | 226.88 | 0.4647 | 899.8 | 757.1 | |
| 3.17 | -5.00 | 1.77 | -5.00 | -18.88 | 332.40 | 20.88 | 226.55 | 0.4665 | 808.5 | 999999 | |
| 8.14 | -5.00 | 4.54 | -5.00 | -18.85 | 332.12 | 20.60 | 226.23 | 0.4630 | 1076.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -23.87 | 331.06 | 19.54 | 217.36 | 0.5062 | 728.0 | 433.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.99 | 329.99 | 18.47 | 218.41 | 0.4747 | 816.0 | 638.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -18.43 | 325.32 | 13.80 | 215.96 | 0.3870 | -923.0 | -682.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
