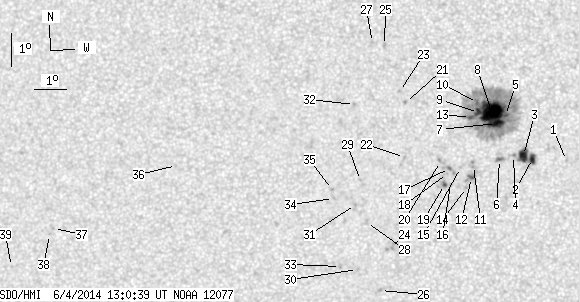

SDO HMI 2014-06-04 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.27 | 310.09 | 34.92 | 156.61 | -4.66 | 300.83 | -10.14 | 113.62 | 0.1928 | 678.1 | 384.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.45 | -5.64 | 303.58 | -7.39 | 126.24 | 0.1594 | 933.0 | 716.3 | |
| 4.25 | 20.08 | 2.14 | 10.10 | -5.58 | 302.53 | -8.44 | 122.42 | 0.1737 | 1198.6 | 831.4 | |
| 8.77 | -2.00 | 4.41 | -2.00 | -5.49 | 302.26 | -8.71 | 121.15 | 0.1770 | 1157.5 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -5.49 | 301.95 | -9.02 | 120.27 | 0.1815 | 896.0 | 714.7 | |
| 0.27 | 233.77 | 0.14 | 117.77 | -4.27 | 301.72 | -9.25 | 113.56 | 0.1757 | 1198.7 | 437.3 | |
| 0.90 | 4.25 | 0.46 | 2.14 | -5.61 | 301.51 | -9.46 | 119.69 | 0.1891 | 1033.6 | 860.5 | |
| 9.22 | -5.00 | 4.65 | -5.00 | -4.51 | 301.44 | -9.53 | 114.18 | 0.1818 | 1274.4 | 999999 | |
| 35.45 | -5.00 | 17.86 | -5.00 | -4.14 | 301.29 | -9.68 | 112.00 | 0.1817 | 1405.9 | 999999 | |
| 4.25 | -5.00 | 2.14 | -5.00 | -4.17 | 300.88 | -10.08 | 111.35 | 0.1883 | 920.2 | 999999 | |
| 1.09 | -5.00 | 0.55 | -5.00 | -3.87 | 300.86 | -10.11 | 109.77 | 0.1870 | 768.7 | 999999 | |
| 0.00 | 3.07 | 0.00 | 1.56 | -5.79 | 300.70 | -10.27 | 118.53 | 0.2027 | 779.0 | 774.4 | |
| 1.36 | 4.61 | 0.69 | 2.34 | -6.16 | 300.63 | -10.34 | 119.95 | 0.2068 | 1034.7 | 671.6 | |
| 1.99 | -5.00 | 1.00 | -5.00 | -4.32 | 300.63 | -10.33 | 111.63 | 0.1933 | 469.6 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.46 | 300.47 | -10.50 | 120.83 | 0.2118 | -740.0 | -585.8 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -5.85 | 300.30 | -10.67 | 117.88 | 0.2093 | 885.0 | 664.6 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -6.37 | 299.97 | -10.99 | 119.32 | 0.2184 | 929.0 | 681.0 | |
| 0.54 | 4.61 | 0.28 | 2.34 | -5.88 | 299.95 | -11.01 | 117.27 | 0.2148 | 1126.5 | 834.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.03 | 299.89 | -11.08 | 117.77 | 0.2170 | 744.0 | 658.0 | |
| 1.18 | 2.80 | 0.60 | 1.42 | -6.37 | 299.79 | -11.18 | 118.92 | 0.2212 | 875.2 | 709.4 | |
| 0.00 | 2.53 | 0.00 | 1.28 | -5.67 | 299.68 | -11.29 | 115.82 | 0.2174 | 656.0 | 613.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -3.86 | 298.62 | -12.35 | 106.43 | 0.2234 | 937.0 | 768.8 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -5.54 | 298.56 | -12.41 | 113.29 | 0.2340 | -828.0 | -634.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -3.53 | 298.44 | -12.53 | 104.77 | 0.2249 | 904.0 | 739.8 | |
| 0.00 | 4.16 | 0.00 | 2.14 | -8.30 | 298.04 | -12.93 | 122.28 | 0.2631 | -817.0 | -766.7 | |
| 0.00 | 2.26 | 0.00 | 1.15 | -2.13 | 297.99 | -12.98 | 98.28 | 0.2278 | 855.0 | 619.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.62 | 297.67 | -13.30 | 125.66 | 0.2803 | -915.0 | -798.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -2.04 | 297.61 | -13.35 | 97.66 | 0.2340 | 841.0 | 705.6 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -7.53 | 297.31 | -13.66 | 118.40 | 0.2673 | -392.0 | -366.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.24 | 297.16 | -13.81 | 113.72 | 0.2604 | -739.0 | -535.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.97 | 296.97 | -14.00 | 122.38 | 0.2842 | -771.0 | -601.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.97 | 296.98 | -13.99 | 116.00 | 0.2682 | -1000.0 | -772.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -3.92 | 297.02 | -13.94 | 104.90 | 0.2499 | -963.0 | -706.2 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -8.88 | 296.43 | -14.54 | 121.16 | 0.2910 | -732.0 | -615.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.79 | 296.29 | -14.68 | 114.34 | 0.2774 | -810.0 | -637.0 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -6.51 | 296.27 | -14.70 | 113.39 | 0.2759 | -979.0 | -818.1 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -5.77 | 291.29 | -19.67 | 106.03 | 0.3500 | -625.0 | -520.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.69 | 287.14 | -23.83 | 107.94 | 0.4226 | -776.0 | -596.5 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -7.87 | 287.00 | -23.97 | 108.26 | 0.4256 | -780.0 | -612.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -8.85 | 285.64 | -25.33 | 109.51 | 0.4503 | -590.0 | -411.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
