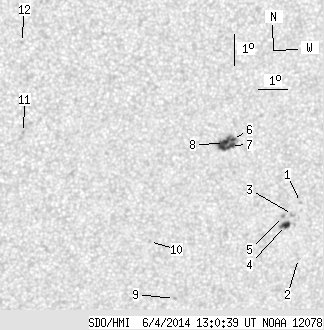

SDO HMI 2014-06-04 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.08 | 37.24 | 10.79 | 21.09 | -19.74 | 332.62 | 21.65 | 226.05 | 0.4836 | 712.7 | 541.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.58 | -20.72 | 335.10 | 24.13 | 227.55 | 0.5203 | 692.0 | 561.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -22.55 | 335.35 | 24.39 | 225.13 | 0.5401 | -585.0 | -453.4 | |
| 0.00 | 1.99 | 0.00 | 1.15 | -21.11 | 334.88 | 23.91 | 226.71 | 0.5216 | 738.0 | 697.5 | |
| 4.34 | 6.60 | 2.52 | 3.83 | -21.47 | 334.69 | 23.72 | 225.96 | 0.5229 | 829.3 | 602.2 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -21.17 | 334.57 | 23.60 | 226.26 | 0.5188 | 896.0 | 821.3 | |
| 1.90 | 21.52 | 1.07 | 12.07 | -18.68 | 332.41 | 21.44 | 227.59 | 0.4709 | 898.7 | 666.0 | |
| 3.80 | -6.00 | 2.13 | -6.00 | -18.88 | 332.37 | 21.40 | 227.22 | 0.4723 | 849.5 | 999999 | |
| 9.04 | -6.00 | 5.07 | -6.00 | -18.81 | 332.15 | 21.18 | 227.05 | 0.4692 | 1090.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -23.87 | 331.15 | 20.18 | 218.21 | 0.5120 | 728.0 | 665.8 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -21.99 | 329.99 | 19.02 | 219.21 | 0.4800 | 741.0 | 623.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -18.46 | 325.33 | 14.36 | 216.99 | 0.3928 | -919.0 | -727.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -15.60 | 325.05 | 14.08 | 221.52 | 0.3550 | 712.0 | 533.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
