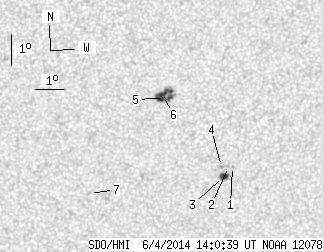

SDO HMI 2014-06-04 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.17 | 31.93 | 10.32 | 18.18 | -19.75 | 332.98 | 22.56 | 227.24 | 0.4937 | 912.3 | 669.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.47 | -21.11 | 334.97 | 24.55 | 227.42 | 0.5286 | 688.0 | 568.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -21.11 | 334.83 | 24.41 | 227.26 | 0.5270 | 688.0 | 577.6 | |
| 4.52 | 6.24 | 2.64 | 3.64 | -21.43 | 334.71 | 24.29 | 226.64 | 0.5287 | 866.6 | 609.7 | |
| 0.00 | 1.99 | 0.00 | 1.16 | -21.11 | 334.58 | 24.16 | 226.99 | 0.5242 | 926.0 | 754.5 | |
| 2.80 | 20.53 | 1.58 | 11.56 | -18.88 | 332.40 | 21.98 | 227.95 | 0.4790 | 807.2 | 691.4 | |
| 10.85 | -5.00 | 6.10 | -5.00 | -18.81 | 332.18 | 21.77 | 227.79 | 0.4759 | 1057.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -21.99 | 330.06 | 19.64 | 220.08 | 0.4861 | 749.0 | 652.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
