SDO HMI 2014-06-04 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.61 | 18.56 | 2.92 | 12.37 | 4.06 | 268.85 | -41.56 | 83.52 | 0.6654 | -488.0 | -345.7 | |
|
previous
or next observation for the same group /

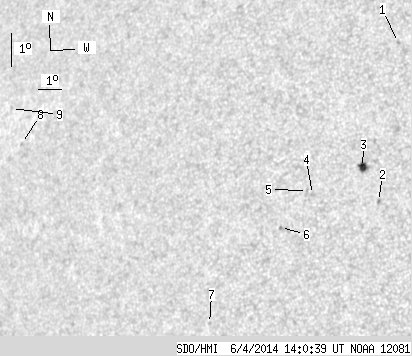

back to the solar disc SDO HMI 2014-06-04 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.08 | 7.98 | 273.21 | -37.21 | 76.62 | 0.6178 | -716.0 | -525.6 | |
| 0.00 | 1.72 | 0.00 | 1.08 | 3.12 | 272.79 | -37.62 | 84.56 | 0.6146 | -799.0 | -645.4 | |
| 4.61 | 7.05 | 2.92 | 4.46 | 4.16 | 272.12 | -38.29 | 82.98 | 0.6250 | -802.9 | -493.2 | |
| 0.00 | 2.08 | 0.00 | 1.35 | 3.35 | 270.19 | -40.23 | 84.52 | 0.6499 | -697.0 | -657.2 | |
| 0.00 | 1.36 | 0.00 | 0.88 | 3.47 | 269.98 | -40.43 | 84.36 | 0.6528 | -549.0 | -462.3 | |
| 0.00 | 1.09 | 0.00 | 0.72 | 2.34 | 268.94 | -41.48 | 86.17 | 0.6655 | -683.0 | -558.2 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -0.57 | 266.01 | -44.40 | 90.54 | 0.7020 | -490.0 | -409.2 | |
| 0.00 | 1.18 | 0.00 | 0.98 | 4.96 | 257.01 | -53.40 | 83.64 | 0.8070 | 442.0 | 393.8 | |
| 0.00 | 1.18 | 0.00 | 1.00 | 6.03 | 256.35 | -54.06 | 82.38 | 0.8145 | 508.0 | 403.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
