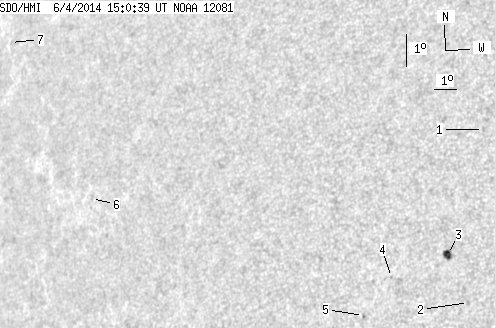

SDO HMI 2014-06-04 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.25 | 13.57 | 2.67 | 9.07 | 4.84 | 268.45 | -41.41 | 82.46 | 0.6618 | -472.9 | -325.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.85 | 8.01 | 273.23 | -36.63 | 76.40 | 0.6101 | -681.0 | -563.0 | |
| 0.00 | 1.63 | 0.00 | 1.01 | 2.72 | 273.03 | -36.84 | 85.12 | 0.6033 | -728.0 | -619.7 | |
| 4.25 | 6.33 | 2.67 | 3.98 | 4.19 | 272.15 | -37.71 | 82.84 | 0.6170 | -832.6 | -621.0 | |
| 0.00 | 0.99 | 0.00 | 0.64 | 3.50 | 269.99 | -39.87 | 84.25 | 0.6453 | -615.0 | -529.4 | |
| 0.00 | 1.27 | 0.00 | 0.83 | 2.34 | 268.92 | -40.94 | 86.13 | 0.6585 | -636.0 | -508.8 | |
| 0.00 | 1.36 | 0.00 | 1.14 | 5.97 | 256.34 | -53.53 | 82.40 | 0.8090 | 425.0 | 310.9 | |
| 0.00 | 0.63 | 0.00 | 0.62 | 10.80 | 250.74 | -59.12 | 77.32 | 0.8661 | 358.0 | 386.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
