SDO HMI 2014-06-04 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.67 | 329.74 | 29.89 | 165.37 | -4.64 | 301.10 | -7.66 | 119.94 | 0.1545 | 641.1 | 357.1 | |
|
previous
or next observation for the same group /

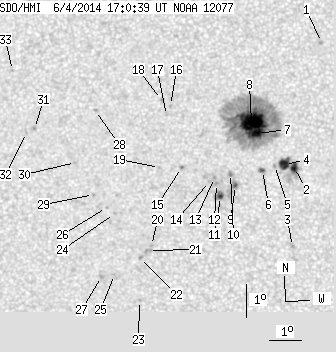

back to the solar disc SDO HMI 2014-06-04 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.85 | -1.74 | 303.52 | -5.23 | 105.91 | 0.0953 | 1006.0 | 823.6 | |
| 4.43 | 26.85 | 2.22 | 13.44 | -5.55 | 302.67 | -6.09 | 131.15 | 0.1409 | 1183.8 | 496.2 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -7.96 | 302.57 | -6.19 | 141.51 | 0.1722 | 990.0 | 795.1 | |
| 8.23 | -2.00 | 4.12 | -2.00 | -5.46 | 302.36 | -6.40 | 129.28 | 0.1439 | 1151.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | -5.49 | 302.05 | -6.70 | 128.13 | 0.1484 | 851.0 | 677.7 | |
| 1.18 | 2.44 | 0.59 | 1.22 | -5.64 | 301.68 | -7.08 | 127.44 | 0.1551 | 1098.4 | 886.8 | |
| 9.40 | 247.90 | 4.71 | 124.14 | -4.51 | 301.51 | -7.25 | 120.56 | 0.1467 | 1273.8 | 427.9 | |
| 33.27 | -7.00 | 16.66 | -7.00 | -4.14 | 301.36 | -7.40 | 117.86 | 0.1459 | 1442.4 | 999999 | |
| 0.90 | 9.31 | 0.45 | 4.68 | -6.09 | 300.84 | -7.91 | 126.63 | 0.1714 | 1129.4 | 304.0 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -5.73 | 300.69 | -8.06 | 124.37 | 0.1698 | 1162.0 | 965.8 | |
| 2.26 | 6.78 | 1.14 | 3.42 | -6.43 | 300.37 | -8.38 | 126.61 | 0.1813 | 1086.6 | 816.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -6.03 | 300.26 | -8.50 | 124.42 | 0.1790 | 944.0 | 775.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.85 | 300.20 | -8.56 | 123.38 | 0.1781 | 1242.0 | 1048.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | -5.97 | 300.04 | -8.72 | 123.48 | 0.1815 | 662.0 | 571.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -5.54 | 299.18 | -9.57 | 119.12 | 0.1904 | -628.0 | -483.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -3.65 | 298.87 | -9.89 | 109.09 | 0.1821 | 919.0 | 705.1 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -3.96 | 298.74 | -10.01 | 110.43 | 0.1860 | 851.0 | 633.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -3.47 | 298.59 | -10.16 | 107.68 | 0.1857 | 930.0 | 726.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.54 | 298.50 | -10.26 | 117.49 | 0.2007 | -725.0 | -488.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.93 | 298.20 | -10.56 | 126.35 | 0.2264 | -859.0 | -685.1 | |
| 0.00 | 3.35 | 0.00 | 1.70 | -8.08 | 298.10 | -10.66 | 126.65 | 0.2293 | -939.0 | -775.6 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -8.29 | 297.84 | -10.91 | 126.76 | 0.2349 | -962.0 | -778.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.62 | 297.77 | -10.99 | 130.89 | 0.2497 | -940.0 | -737.4 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -6.94 | 297.07 | -11.69 | 120.10 | 0.2335 | -1009.0 | -853.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.81 | 297.01 | -11.75 | 126.52 | 0.2514 | -1035.0 | -832.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -6.76 | 296.82 | -11.94 | 118.90 | 0.2357 | -878.0 | -634.6 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -8.88 | 296.60 | -12.16 | 125.79 | 0.2577 | -863.0 | -719.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -3.80 | 296.54 | -12.22 | 106.34 | 0.2210 | -851.0 | -678.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.36 | 296.42 | -12.33 | 116.64 | 0.2385 | -899.0 | -740.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.38 | 295.88 | -12.87 | 111.98 | 0.2402 | -882.0 | -683.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -4.34 | 294.62 | -14.14 | 106.35 | 0.2549 | -1045.0 | -853.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.46 | 294.37 | -14.39 | 106.53 | 0.2596 | -725.0 | -586.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -2.58 | 293.96 | -14.80 | 99.05 | 0.2595 | -771.0 | -584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
