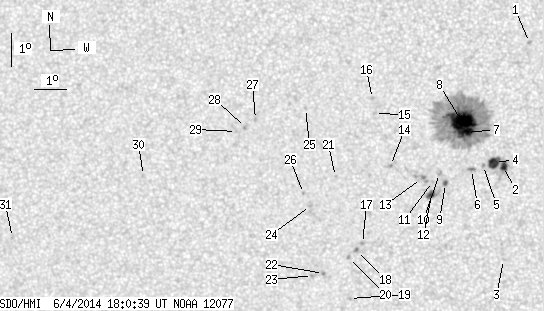

SDO HMI 2014-06-04 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.20 | 327.04 | 31.11 | 163.83 | -4.62 | 301.05 | -7.16 | 121.68 | 0.1470 | 657.1 | 354.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.03 | -1.77 | 303.48 | -4.72 | 107.88 | 0.0867 | 1069.0 | 765.0 | |
| 4.25 | 23.69 | 2.12 | 11.84 | -5.54 | 302.66 | -5.54 | 133.85 | 0.1338 | 1186.9 | 582.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -8.39 | 302.63 | -5.58 | 145.83 | 0.1719 | 846.0 | 648.1 | |
| 8.68 | -2.00 | 4.34 | -2.00 | -5.42 | 302.39 | -5.81 | 131.80 | 0.1359 | 1145.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.86 | -5.51 | 302.05 | -6.15 | 130.70 | 0.1413 | 901.0 | 693.9 | |
| 0.36 | 2.98 | 0.18 | 1.49 | -5.63 | 301.68 | -6.52 | 129.70 | 0.1476 | 1123.5 | 863.3 | |
| 9.22 | 248.80 | 4.61 | 124.43 | -4.51 | 301.54 | -6.66 | 122.69 | 0.1381 | 1324.2 | 419.4 | |
| 35.08 | -7.00 | 17.54 | -7.00 | -4.14 | 301.39 | -6.81 | 119.83 | 0.1370 | 1439.3 | 999999 | |
| 0.99 | 2.17 | 0.50 | 1.09 | -6.06 | 300.87 | -7.33 | 128.60 | 0.1630 | 1108.4 | 954.5 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -5.75 | 300.69 | -7.51 | 126.43 | 0.1623 | 1122.0 | 842.9 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.00 | 300.47 | -7.73 | 126.84 | 0.1679 | 947.0 | 789.4 | |
| 3.62 | 9.13 | 1.82 | 4.59 | -6.40 | 300.44 | -7.77 | 128.57 | 0.1725 | 1001.3 | 350.9 | |
| 0.00 | 5.97 | 0.00 | 3.00 | -5.91 | 300.14 | -8.07 | 125.24 | 0.1717 | 922.0 | 864.8 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -5.51 | 299.18 | -9.02 | 120.44 | 0.1818 | -541.0 | -450.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -3.92 | 298.71 | -9.49 | 111.29 | 0.1773 | 948.0 | 659.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -3.46 | 298.66 | -9.54 | 108.73 | 0.1756 | 923.0 | 685.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.89 | 298.26 | -9.94 | 127.90 | 0.2176 | -837.0 | -765.3 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -8.11 | 298.07 | -10.13 | 128.15 | 0.2224 | -951.0 | -850.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -9.58 | 297.81 | -10.39 | 132.37 | 0.2418 | -892.0 | -715.7 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -8.32 | 297.82 | -10.38 | 128.22 | 0.2280 | -999.0 | -776.0 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -5.84 | 297.47 | -10.73 | 117.76 | 0.2102 | -868.0 | -640.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -8.81 | 297.02 | -11.18 | 127.85 | 0.2438 | -1028.0 | -834.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.87 | 296.67 | -11.53 | 127.22 | 0.2491 | -946.0 | -720.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.73 | 296.67 | -11.53 | 119.62 | 0.2293 | -900.0 | -712.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -3.77 | 296.58 | -11.63 | 106.98 | 0.2112 | -825.0 | -601.8 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -6.36 | 296.46 | -11.74 | 117.77 | 0.2295 | -884.0 | -726.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.10 | 295.01 | -13.19 | 106.45 | 0.2384 | -838.0 | -747.1 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -4.34 | 294.69 | -13.51 | 107.05 | 0.2447 | -988.0 | -841.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -4.46 | 294.41 | -13.79 | 107.19 | 0.2499 | -856.0 | -692.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.80 | 291.43 | -16.77 | 108.64 | 0.3043 | -712.0 | -594.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.68 | 287.11 | -21.10 | 109.98 | 0.3811 | -734.0 | -611.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
