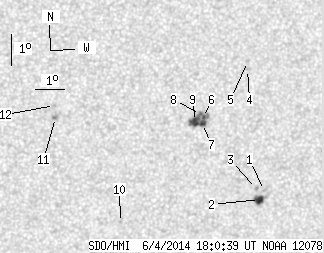

SDO HMI 2014-06-04 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.62 | 41.04 | 10.79 | 23.71 | -19.62 | 332.63 | 24.43 | 229.48 | 0.5137 | 718.9 | 408.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.07 | -21.06 | 334.99 | 26.79 | 229.78 | 0.5530 | 787.0 | 604.4 | |
| 5.79 | 9.85 | 3.44 | 5.86 | -21.36 | 334.87 | 26.67 | 229.22 | 0.5541 | 878.7 | 511.5 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -21.00 | 334.69 | 26.49 | 229.57 | 0.5491 | 902.0 | 729.2 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -17.17 | 333.72 | 25.52 | 234.70 | 0.5064 | 819.0 | 809.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -16.92 | 333.69 | 25.48 | 235.09 | 0.5040 | 781.0 | 588.4 | |
| 1.63 | 20.70 | 0.93 | 11.85 | -18.71 | 332.40 | 24.20 | 230.78 | 0.5032 | 955.6 | 733.2 | |
| 2.98 | -6.00 | 1.71 | -6.00 | -18.90 | 332.39 | 24.19 | 230.46 | 0.5048 | 775.0 | 999999 | |
| 0.81 | -6.00 | 0.47 | -6.00 | -18.61 | 332.28 | 24.08 | 230.80 | 0.5009 | 972.7 | 999999 | |
| 7.41 | -6.00 | 4.24 | -6.00 | -18.83 | 332.14 | 23.94 | 230.28 | 0.5012 | 1048.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.11 | 330.01 | 21.80 | 222.72 | 0.5092 | 638.0 | 483.8 | |
| 0.00 | 3.25 | 0.00 | 1.80 | -18.71 | 327.28 | 19.08 | 224.35 | 0.4448 | -827.0 | -719.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -18.32 | 327.20 | 19.00 | 224.88 | 0.4399 | -704.0 | -505.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
