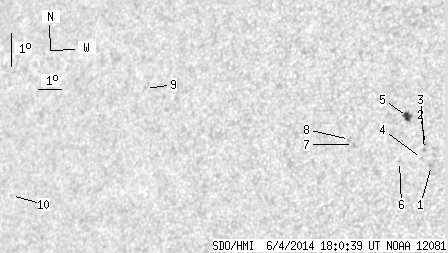

SDO HMI 2014-06-04 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.16 | 18.71 | 2.55 | 11.78 | 3.65 | 270.49 | -37.71 | 83.67 | 0.6145 | -532.1 | -449.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.31 | 2.75 | 273.18 | -35.02 | 84.86 | 0.5778 | -502.0 | -493.9 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 3.39 | 272.93 | -35.27 | 83.79 | 0.5820 | -643.0 | -558.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 3.24 | 272.90 | -35.30 | 84.05 | 0.5823 | -810.0 | -670.1 | |
| 0.00 | 0.99 | 0.00 | 0.61 | 2.97 | 272.80 | -35.41 | 84.54 | 0.5834 | -534.0 | -484.7 | |
| 4.16 | 6.78 | 2.55 | 4.17 | 4.25 | 272.21 | -35.99 | 82.45 | 0.5933 | -846.2 | -603.3 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 2.88 | 271.97 | -36.23 | 84.80 | 0.5949 | -565.0 | -477.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 3.40 | 270.19 | -38.01 | 84.17 | 0.6202 | -733.0 | -578.7 | |
| 0.00 | 2.17 | 0.00 | 1.37 | 3.56 | 270.03 | -38.18 | 83.94 | 0.6226 | -734.0 | -605.9 | |
| 0.00 | 1.18 | 0.00 | 0.85 | 5.15 | 261.44 | -46.76 | 82.72 | 0.7337 | 104.0 | 143.8 | |
| 0.00 | 0.63 | 0.00 | 0.52 | 1.91 | 255.31 | -52.89 | 87.42 | 0.8001 | 429.0 | 382.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
