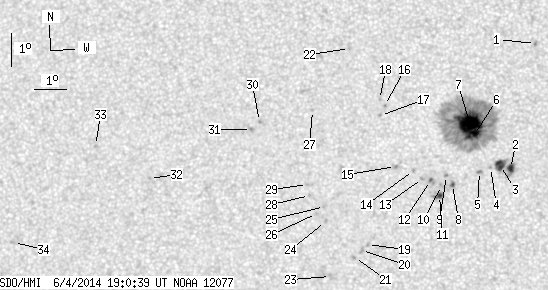

SDO HMI 2014-06-04 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.10 | 326.14 | 31.04 | 163.26 | -4.58 | 300.96 | -6.68 | 123.47 | 0.1396 | 672.0 | 333.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.85 | -1.74 | 303.48 | -4.17 | 109.70 | 0.0775 | 991.0 | 790.1 | |
| 4.25 | 21.61 | 2.12 | 10.79 | -5.54 | 302.69 | -4.96 | 137.02 | 0.1267 | 1215.2 | 631.1 | |
| 7.14 | -2.00 | 3.57 | -2.00 | -5.45 | 302.38 | -5.26 | 134.81 | 0.1293 | 1182.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -5.51 | 302.08 | -5.57 | 133.52 | 0.1339 | 881.0 | 747.8 | |
| 0.00 | 2.17 | 0.00 | 1.09 | -5.63 | 301.74 | -5.91 | 132.50 | 0.1396 | 1155.0 | 911.1 | |
| 8.86 | 250.79 | 4.43 | 125.29 | -4.50 | 301.59 | -6.05 | 125.24 | 0.1293 | 1336.6 | 405.6 | |
| 37.70 | -6.00 | 18.83 | -6.00 | -4.14 | 301.44 | -6.20 | 122.21 | 0.1279 | 1422.1 | 999999 | |
| 0.90 | 1.81 | 0.45 | 0.91 | -6.03 | 300.90 | -6.74 | 130.79 | 0.1550 | 1071.7 | 880.9 | |
| 0.00 | 1.72 | 0.00 | 0.86 | -5.75 | 300.72 | -6.93 | 128.66 | 0.1543 | 1077.0 | 835.5 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -6.06 | 300.56 | -7.08 | 129.55 | 0.1598 | 702.0 | 638.4 | |
| 2.62 | 6.15 | 1.32 | 3.09 | -6.36 | 300.50 | -7.15 | 130.75 | 0.1640 | 1054.7 | 689.0 | |
| 0.63 | 2.98 | 0.32 | 1.50 | -5.90 | 300.23 | -7.42 | 127.51 | 0.1627 | 1083.3 | 895.8 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -5.84 | 299.98 | -7.67 | 126.32 | 0.1655 | 749.0 | 624.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -5.60 | 299.71 | -7.94 | 124.17 | 0.1669 | 855.0 | 639.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -5.48 | 299.15 | -8.49 | 121.81 | 0.1738 | -631.0 | -535.8 | |
| 0.00 | 1.08 | 0.00 | 0.54 | -3.62 | 298.84 | -8.81 | 111.05 | 0.1645 | 918.0 | 786.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -3.92 | 298.71 | -8.93 | 112.48 | 0.1684 | 902.0 | 688.6 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -3.43 | 298.69 | -8.96 | 109.69 | 0.1659 | 890.0 | 667.9 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -7.86 | 298.24 | -9.41 | 129.30 | 0.2102 | -894.0 | -731.7 | |
| 0.00 | 3.16 | 0.00 | 1.60 | -8.04 | 298.05 | -9.60 | 129.42 | 0.2147 | -906.0 | -724.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.26 | 297.82 | -9.82 | 129.55 | 0.2200 | -897.0 | -721.1 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -1.88 | 297.77 | -9.87 | 99.46 | 0.1745 | 702.0 | 419.6 | |
| 0.00 | 2.35 | 0.00 | 1.20 | -8.84 | 297.06 | -10.59 | 129.46 | 0.2363 | -808.0 | -787.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -7.15 | 296.95 | -10.70 | 123.15 | 0.2210 | -797.0 | -753.9 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -6.69 | 296.93 | -10.72 | 121.31 | 0.2172 | -732.0 | -697.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.91 | 296.67 | -10.97 | 121.56 | 0.2228 | -764.0 | -619.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | -3.76 | 296.61 | -11.04 | 107.82 | 0.2016 | -794.0 | -643.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | -6.36 | 296.47 | -11.18 | 118.93 | 0.2211 | -954.0 | -711.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.02 | 296.41 | -11.23 | 117.46 | 0.2193 | -896.0 | -771.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -4.10 | 294.95 | -12.69 | 107.05 | 0.2303 | -976.0 | -784.3 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -4.34 | 294.70 | -12.95 | 107.74 | 0.2356 | -1022.0 | -831.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.83 | 291.44 | -16.20 | 109.33 | 0.2955 | -790.0 | -576.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -4.82 | 289.75 | -17.90 | 104.62 | 0.3178 | -724.0 | -470.1 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -7.77 | 286.97 | -20.68 | 110.57 | 0.3752 | -764.0 | -611.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
