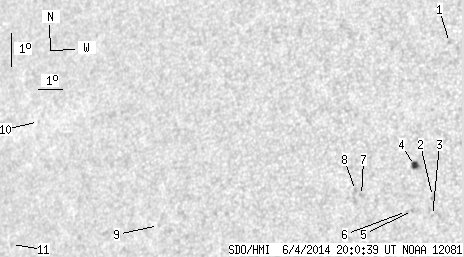

SDO HMI 2014-06-04 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.25 | 18.81 | 1.97 | 11.88 | 3.72 | 269.30 | -37.79 | 83.41 | 0.6147 | -436.8 | -375.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-04 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.82 | 8.04 | 273.25 | -33.84 | 75.42 | 0.5719 | -790.0 | -570.6 | |
| 0.00 | 2.26 | 0.00 | 1.36 | 3.33 | 272.93 | -34.16 | 83.72 | 0.5660 | -785.0 | -613.6 | |
| 0.00 | 0.63 | 0.00 | 0.38 | 2.75 | 272.95 | -34.14 | 84.74 | 0.5650 | -626.0 | -581.0 | |
| 3.25 | 5.61 | 1.97 | 3.39 | 4.28 | 272.22 | -34.87 | 82.20 | 0.5775 | -868.6 | -658.2 | |
| 0.00 | 1.08 | 0.00 | 0.66 | 2.91 | 272.21 | -34.88 | 84.58 | 0.5759 | -724.0 | -651.1 | |
| 0.00 | 1.18 | 0.00 | 0.71 | 2.88 | 271.99 | -35.10 | 84.66 | 0.5790 | -587.0 | -528.2 | |
| 0.00 | 2.26 | 0.00 | 1.40 | 3.37 | 270.27 | -36.82 | 84.06 | 0.6037 | -778.0 | -502.8 | |
| 0.00 | 1.54 | 0.00 | 0.96 | 3.53 | 270.03 | -37.06 | 83.84 | 0.6072 | -781.0 | -675.4 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 2.49 | 262.09 | -45.00 | 86.24 | 0.7102 | 477.0 | 382.1 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 5.69 | 256.36 | -50.73 | 82.47 | 0.7793 | 530.0 | 486.0 | |
| 0.00 | 1.54 | 0.00 | 1.23 | 1.94 | 255.35 | -51.74 | 87.34 | 0.7879 | 546.0 | 400.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
