SDO HMI 2014-06-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 13.65 | 2.23 | 8.76 | 3.70 | 267.69 | -38.85 | 83.63 | 0.6280 | -377.2 | -255.4 | |
|
previous
or next observation for the same group /

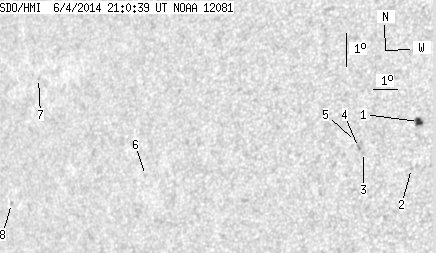

back to the solar disc SDO HMI 2014-06-04 21:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 5.70 | 2.23 | 3.43 | 4.31 | 272.26 | -34.27 | 82.04 | 0.5692 | -874.2 | -654.0 | |
| 0.00 | 1.08 | 0.00 | 0.65 | 2.88 | 272.06 | -34.47 | 84.58 | 0.5700 | -652.0 | -470.8 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 3.37 | 270.25 | -36.29 | 83.99 | 0.5963 | -789.0 | -659.7 | |
| 0.00 | 1.99 | 0.00 | 1.23 | 3.53 | 270.05 | -36.48 | 83.77 | 0.5992 | -763.0 | -650.9 | |
| 0.00 | 0.45 | 0.00 | 0.28 | 3.71 | 269.93 | -36.61 | 83.48 | 0.6011 | -536.0 | -482.2 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 2.70 | 261.49 | -45.05 | 85.95 | 0.7110 | 231.0 | 268.6 | |
| 0.00 | 0.90 | 0.00 | 0.70 | 5.69 | 256.39 | -50.15 | 82.41 | 0.7729 | 555.0 | 440.4 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 1.88 | 255.38 | -51.15 | 87.40 | 0.7814 | 422.0 | 384.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
