SDO HMI 2014-06-04 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.35 | 21.98 | 2.00 | 14.46 | 5.09 | 265.86 | -40.12 | 81.79 | 0.6436 | -318.6 | -197.9 | |
|
previous
or next observation for the same group /

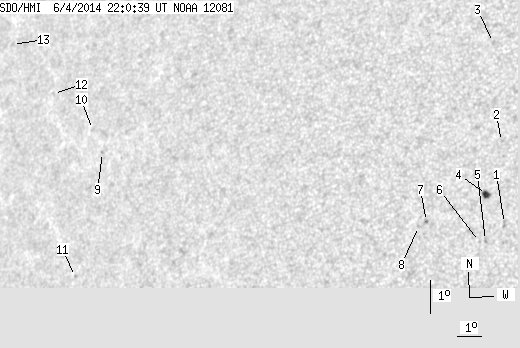

back to the solar disc SDO HMI 2014-06-04 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.89 | 0.00 | 1.71 | 3.43 | 272.99 | -32.99 | 83.37 | 0.5493 | -620.0 | -533.5 | |
| 0.00 | 0.72 | 0.00 | 0.43 | 5.93 | 272.75 | -33.23 | 78.92 | 0.5576 | -608.0 | -433.6 | |
| 0.00 | 1.99 | 0.00 | 1.20 | 8.98 | 272.19 | -33.79 | 73.83 | 0.5741 | -702.0 | -514.2 | |
| 3.35 | 4.88 | 2.00 | 2.92 | 4.32 | 272.29 | -33.69 | 81.91 | 0.5608 | -882.8 | -666.0 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 2.91 | 272.31 | -33.67 | 84.41 | 0.5584 | -657.0 | -542.5 | |
| 0.00 | 0.99 | 0.00 | 0.59 | 2.88 | 272.09 | -33.89 | 84.50 | 0.5615 | -595.0 | -454.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 3.50 | 270.10 | -35.88 | 83.73 | 0.5907 | -842.0 | -696.1 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 3.35 | 269.80 | -36.18 | 84.03 | 0.5947 | -580.0 | -465.0 | |
| 0.00 | 0.99 | 0.00 | 0.76 | 5.66 | 256.40 | -49.58 | 82.39 | 0.7666 | 574.0 | 473.0 | |
| 0.00 | 1.90 | 0.00 | 1.48 | 6.37 | 255.84 | -50.14 | 81.54 | 0.7736 | 209.0 | 227.2 | |
| 0.00 | 1.09 | 0.00 | 0.85 | 1.88 | 255.40 | -50.58 | 87.38 | 0.7751 | 560.0 | 462.5 | |
| 0.00 | 1.09 | 0.00 | 0.89 | 7.48 | 253.75 | -52.23 | 80.39 | 0.7971 | 461.0 | 392.0 | |
| 0.00 | 1.27 | 0.00 | 1.10 | 9.00 | 251.33 | -54.65 | 78.85 | 0.8233 | 105.0 | 123.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
