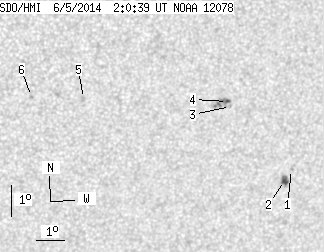

SDO HMI 2014-06-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.80 | 23.79 | 2.95 | 14.24 | -19.52 | 332.42 | 28.65 | 233.63 | 0.5620 | 346.5 | 452.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.62 | -20.90 | 335.28 | 31.51 | 234.06 | 0.6053 | 658.0 | 537.5 | |
| 3.62 | 6.51 | 2.25 | 4.05 | -21.26 | 335.09 | 31.33 | 233.40 | 0.6057 | 818.0 | 621.2 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -18.86 | 332.57 | 28.80 | 234.89 | 0.5593 | 645.0 | 556.7 | |
| 1.18 | 11.04 | 0.70 | 6.56 | -18.70 | 332.43 | 28.66 | 235.03 | 0.5565 | 846.8 | 773.2 | |
| 0.00 | 2.44 | 0.00 | 1.39 | -18.61 | 327.25 | 23.49 | 230.08 | 0.4945 | -712.0 | -604.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -18.54 | 325.44 | 21.67 | 228.03 | 0.4728 | -616.0 | -590.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
