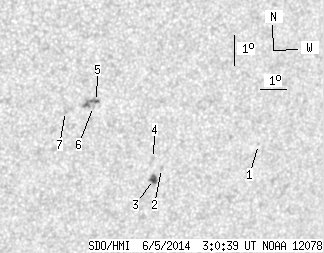

SDO HMI 2014-06-05 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.98 | 19.81 | 2.46 | 12.08 | -19.82 | 333.73 | 30.51 | 234.83 | 0.5861 | 619.6 | 633.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.35 | -20.08 | 338.94 | 35.72 | 238.14 | 0.6479 | 383.0 | 346.3 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -20.86 | 335.33 | 32.12 | 234.57 | 0.6119 | 664.0 | 481.4 | |
| 3.08 | 5.70 | 1.92 | 3.56 | -21.22 | 335.11 | 31.89 | 233.89 | 0.6119 | 842.3 | 621.6 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -20.53 | 334.95 | 31.73 | 234.75 | 0.6053 | 693.0 | 559.6 | |
| 0.90 | 8.05 | 0.54 | 4.81 | -18.69 | 332.43 | 29.21 | 235.50 | 0.5630 | 790.7 | 812.1 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -18.85 | 332.35 | 29.13 | 235.18 | 0.5632 | 552.0 | 446.8 | |
| 0.00 | 1.81 | 0.00 | 1.07 | -19.01 | 331.35 | 28.13 | 234.07 | 0.5526 | 286.0 | 321.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
