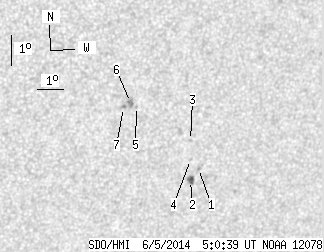

SDO HMI 2014-06-05 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.53 | 16.20 | 1.60 | 10.02 | -19.88 | 333.81 | 31.69 | 235.66 | 0.6002 | 671.7 | 629.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.97 | -20.81 | 335.39 | 33.27 | 235.46 | 0.6247 | 654.0 | 528.4 | |
| 2.53 | 4.98 | 1.60 | 3.15 | -21.20 | 335.18 | 33.06 | 234.76 | 0.6249 | 821.7 | 644.4 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -19.90 | 334.86 | 32.74 | 236.39 | 0.6128 | 154.0 | 93.9 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -20.52 | 335.01 | 32.89 | 235.60 | 0.6185 | 608.0 | 595.5 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -18.81 | 332.58 | 30.46 | 236.31 | 0.5788 | 562.0 | 491.0 | |
| 0.00 | 5.07 | 0.00 | 3.06 | -18.68 | 332.33 | 30.21 | 236.31 | 0.5750 | 892.0 | 713.7 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -18.84 | 332.10 | 29.98 | 235.88 | 0.5734 | 920.0 | 851.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
