SDO HMI 2014-06-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 19.28 | 0.21 | 11.22 | 3.55 | 270.59 | -30.98 | 82.75 | 0.5177 | -680.2 | -589.4 | |
|
previous
or next observation for the same group /

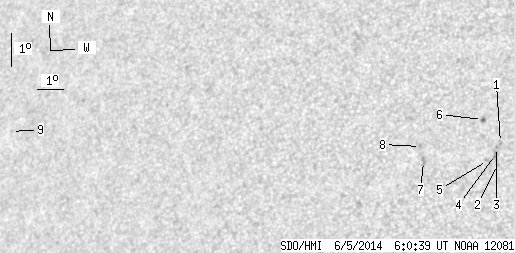

back to the solar disc SDO HMI 2014-06-05 06:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.28 | 3.75 | 273.03 | -28.54 | 81.89 | 0.4835 | -749.0 | -613.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 3.08 | 272.95 | -28.62 | 83.29 | 0.4836 | -833.0 | -660.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 3.59 | 272.90 | -28.67 | 82.24 | 0.4852 | -863.0 | -737.6 | |
| 0.00 | 2.62 | 0.00 | 1.49 | 3.38 | 272.87 | -28.70 | 82.68 | 0.4853 | -869.0 | -724.1 | |
| 0.00 | 3.08 | 0.00 | 1.75 | 3.20 | 272.60 | -28.97 | 83.12 | 0.4891 | -869.0 | -620.1 | |
| 0.36 | 2.35 | 0.21 | 1.34 | 4.45 | 272.38 | -29.19 | 80.64 | 0.4948 | -909.8 | -644.2 | |
| 0.00 | 3.80 | 0.00 | 2.21 | 3.17 | 270.34 | -31.23 | 83.62 | 0.5229 | -790.0 | -738.0 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 3.63 | 270.22 | -31.35 | 82.77 | 0.5255 | -707.0 | -612.4 | |
| 0.00 | 1.18 | 0.00 | 0.87 | 4.14 | 253.93 | -47.65 | 84.25 | 0.7431 | 516.0 | 369.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
