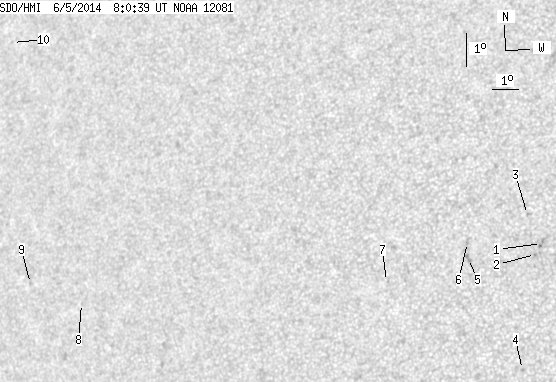

SDO HMI 2014-06-05 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.39 | 0.00 | 9.81 | 3.49 | 267.23 | -33.25 | 83.37 | 0.5478 | -421.4 | -467.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-06-05 08:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 1.62 | 3.60 | 272.91 | -27.57 | 81.95 | 0.4684 | -900.0 | -834.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 3.27 | 272.71 | -27.76 | 82.72 | 0.4708 | -961.0 | -831.5 | |
| 0.00 | 1.72 | 0.00 | 0.97 | 4.49 | 272.39 | -28.08 | 80.24 | 0.4781 | -762.0 | -638.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -0.23 | 272.31 | -28.17 | 90.19 | 0.4740 | -816.0 | -637.8 | |
| 0.00 | 4.25 | 0.00 | 2.44 | 3.15 | 270.38 | -30.10 | 83.46 | 0.5060 | -701.0 | -675.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 3.64 | 270.33 | -30.15 | 82.51 | 0.5076 | -614.0 | -536.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 2.46 | 267.46 | -33.01 | 85.25 | 0.5483 | -540.0 | -530.6 | |
| 0.00 | 0.63 | 0.00 | 0.44 | 1.82 | 255.48 | -45.00 | 87.27 | 0.7099 | 449.0 | 348.4 | |
| 0.00 | 1.45 | 0.00 | 1.06 | 2.44 | 253.20 | -47.28 | 86.54 | 0.7376 | 391.0 | 262.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 9.83 | 251.49 | -48.99 | 76.93 | 0.7655 | 240.0 | 282.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
